Acer XV240Y - Exploded Diagram; Product Exploded Diagram

ACER XV240Y
4
1. Exploded Diagram

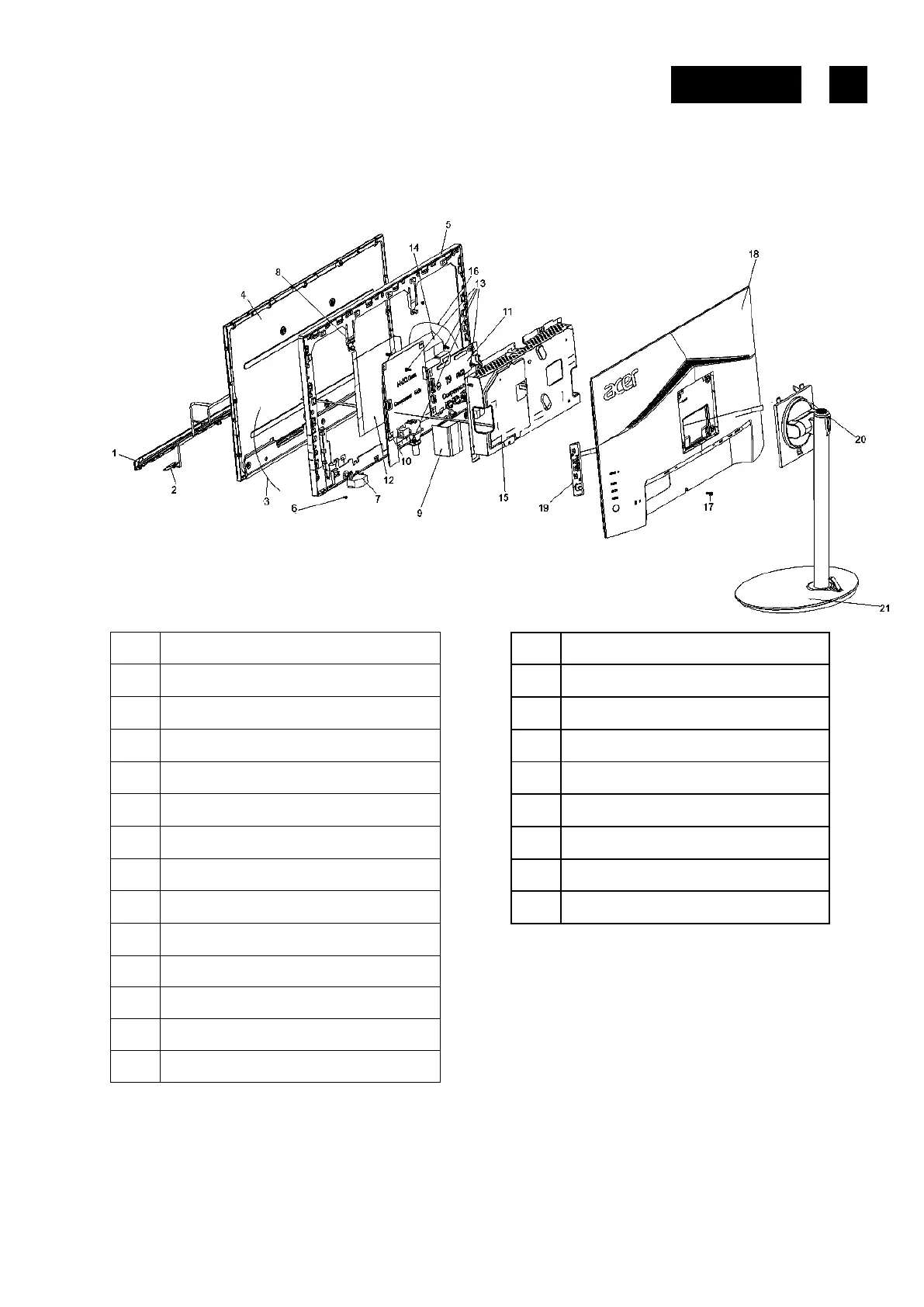

1.1 Product Exploded Diagram
Item
ODM DESCRIPTION
Item
ODM DESCRIPTION
1
ASSY TRIM
14
FFC LVDS
2
PCBA LED BD
15
ASSY SHD
3
LAMP WIRE
16
LVDS WIRE
4
LCDM
17
SCRW
5
MID-FRAME
18
ASSY RC
6
SCRW
19
PCBA CTRL BD
7
SPK
20
ASSY CLMN
8
SCRW
21
ASSY BASE
9
MYLAR
10
PCBA SPS BD
11
PCBA IF BD
12
MYLAR SHD
13
SCRW
