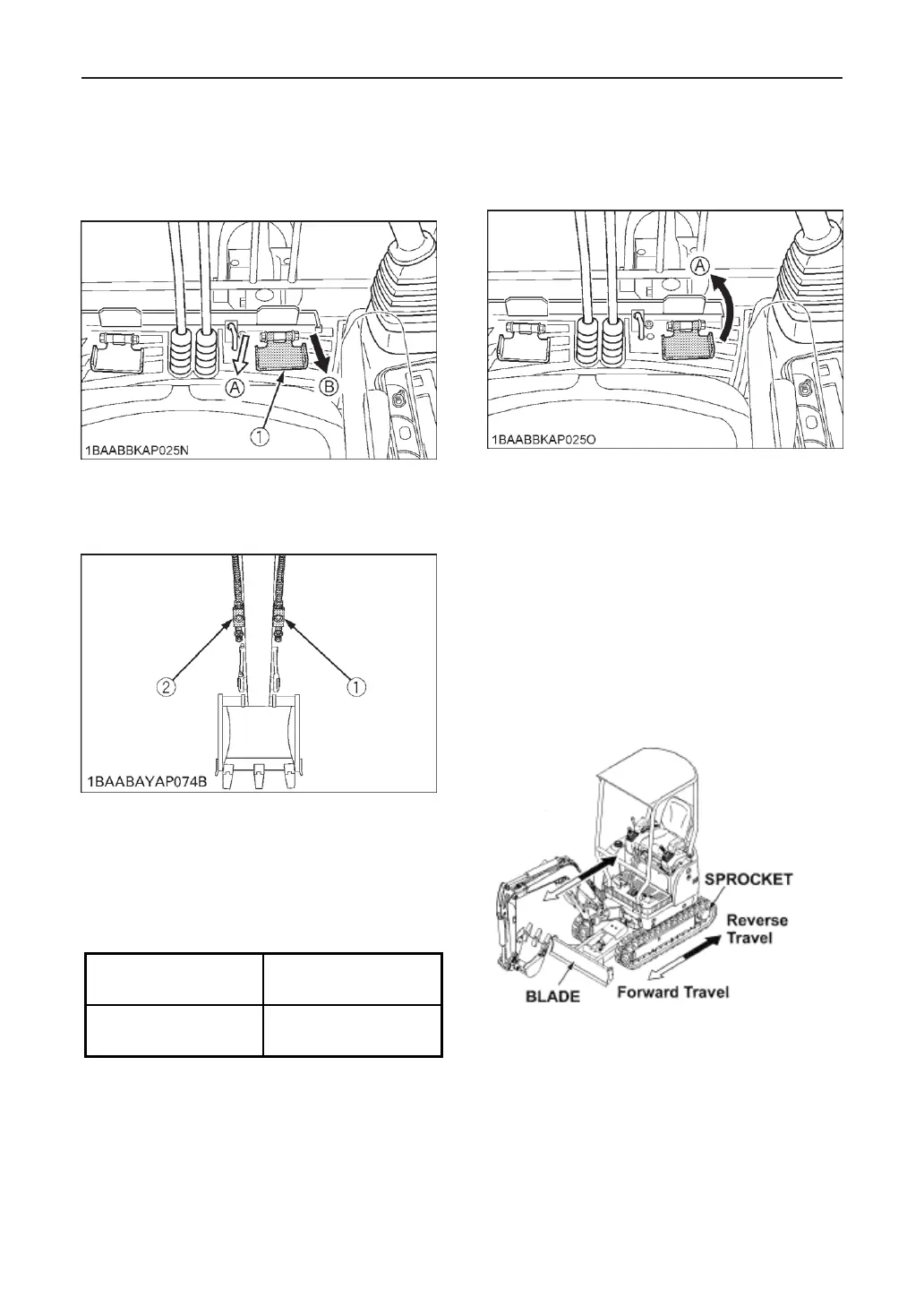

SERVICE PORT OPERATION
This pedal is used to operate attachments
such as breakers.
(1) Service port (A) Sends oil to the port (A)
pedal (B) Sends oil to the port
(B)(Switch button is on the top of the
left control )
(1)
Port (A)
(2)
Port (B)
Push the right of the pedal () to send oil
to the port (A).
Push the left of the pedal (🡇) to send oil
to the port (B).
IMPORTANT:
When the service port is not used for a
long period, dirt particles can settle in the
lower part of the service port lines.
When the plugs on the service port lines
are removed to connect attachments,
drain approx. 100 cc of oil per side.
For breaker choices, contact your dealer.
NOTE:
When the service port is not in use, fold
the service port pedal forward. The pedal
gets fixed and can be used as footrest.
(1)
Service port pedal (A) “Fix”
DRIVING
WARNING
To avoid personal injury or death:
Before starting the engine,
make sure that no one is near
the excavator.
Before operating the excavator,
check the track direction. (Idler
and dozer to the front of the
excavator).
Avoid travelling across a slope
or working sideways on a
slope.
To Next Page
