 TURNS
CAUTION
To avoid personal injury:
 Do not change direction on
steep slopes, or the excavator
could tip over.
 Before changing direction,
beware of people in the working
area.
 Pivot Turn
NOTE:
 Movement as illustrated shows the
turning directions with the dozer in the
front.
When the dozer is in the back, the steering
direction is reversed.
(For example, push the left drive lever
forward and the excavator turns right; the
left track, seen from the operator, will move
backward from the operator.)

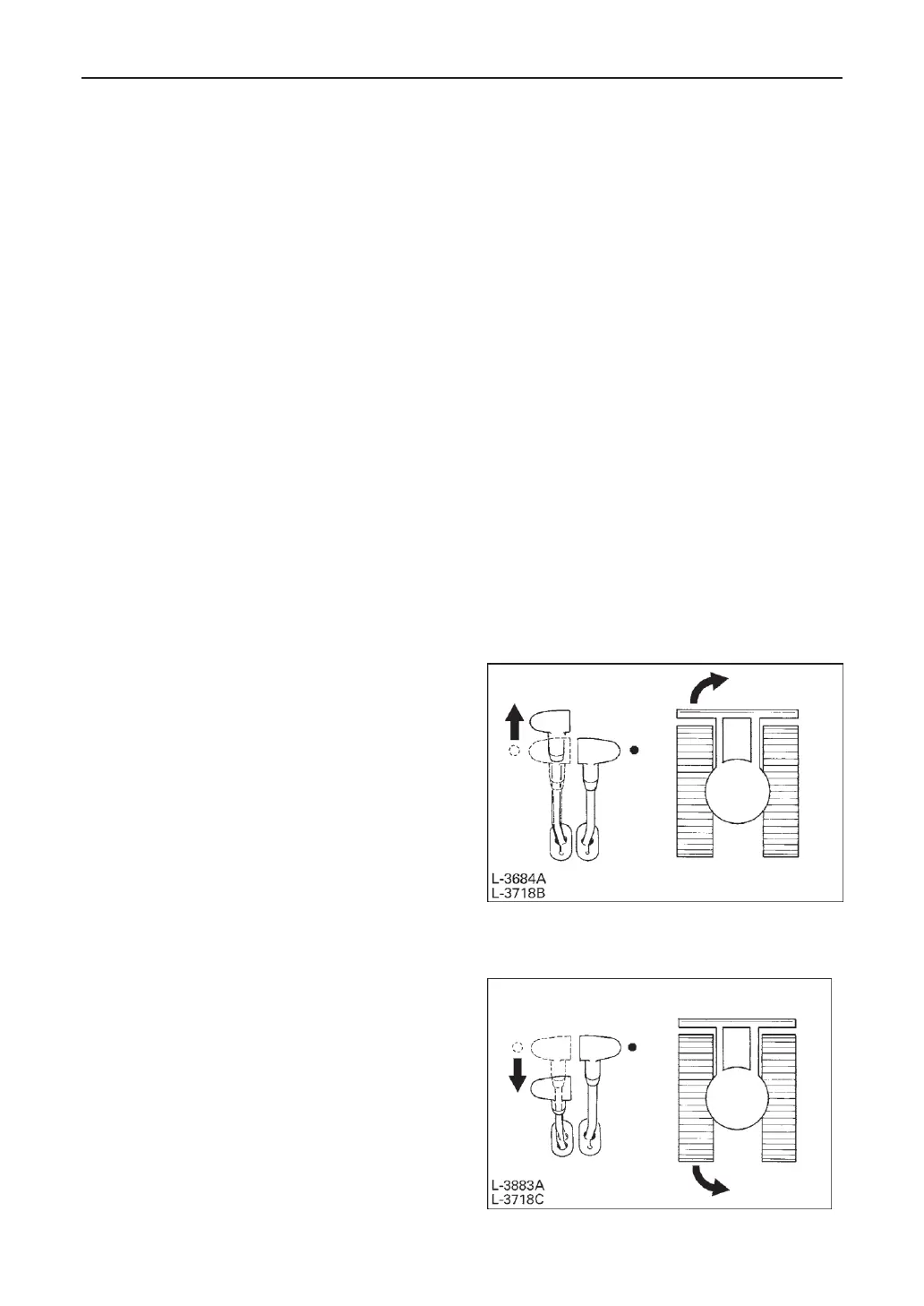

 Change of Direction while Stationary
1. Push the left drive lever forward; the
excavator will turn to the right.
2. Pull the left drive lever backward; the
excavator will turn to the left.
