achilles A23S - Change of Direction while Travelling; Spin Turn

41

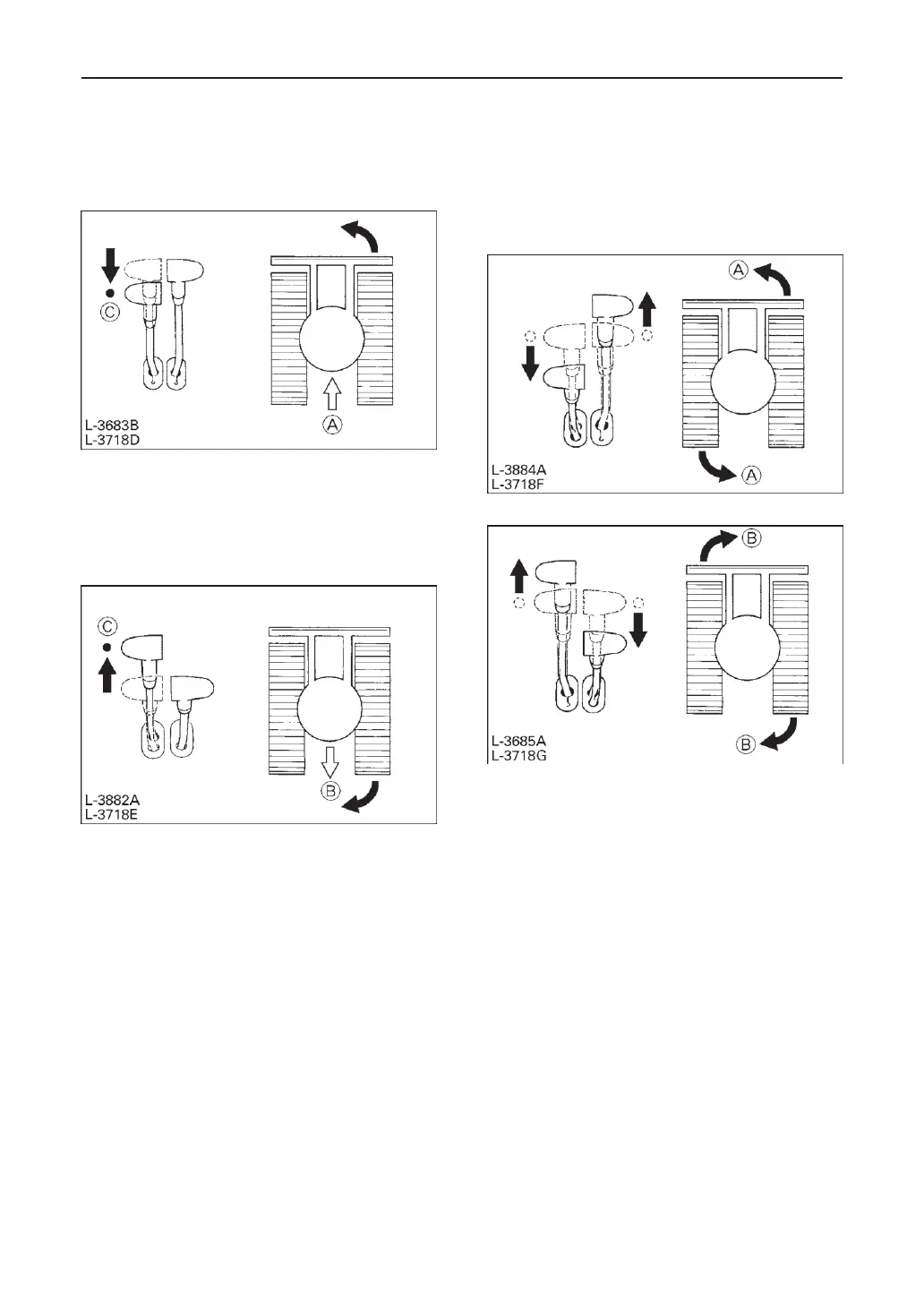

 Change of Direction while Travelling
1. While travelling forwards, bring the left
(right) drive lever in the neutral position;
the excavator will turn to the left (right).
(A) ”Travelling forward”
(C) ”Neutral position”
2. While travelling backwords, bring the left
(right) drive lever in the neutral position;
the excavator will turn to the right (left).
(B) “Travelling backward”
(C) ”Neutral position”
 Spin Turn
When both drive levers are activated in the
opposite directions, both track will rotate
with the same speed but in opposite
directions. Center of rotation is the center of
the excavator.
(A) “Left spin turn”
(B) “Right spin turn”
