(1) Engine oil dipstick (A) Required level
4.
Let the engine idle for approx. 5 min.
Check the engine oil level. To check the
engine oil level, insert the engine oil
dipstick completely into the respective
port opening and pull out again. If the oil
level lies between both markings, no oil
must be added.
IMPORTANT:
Regardless of the service hours, an engine
oil change is due every six months.

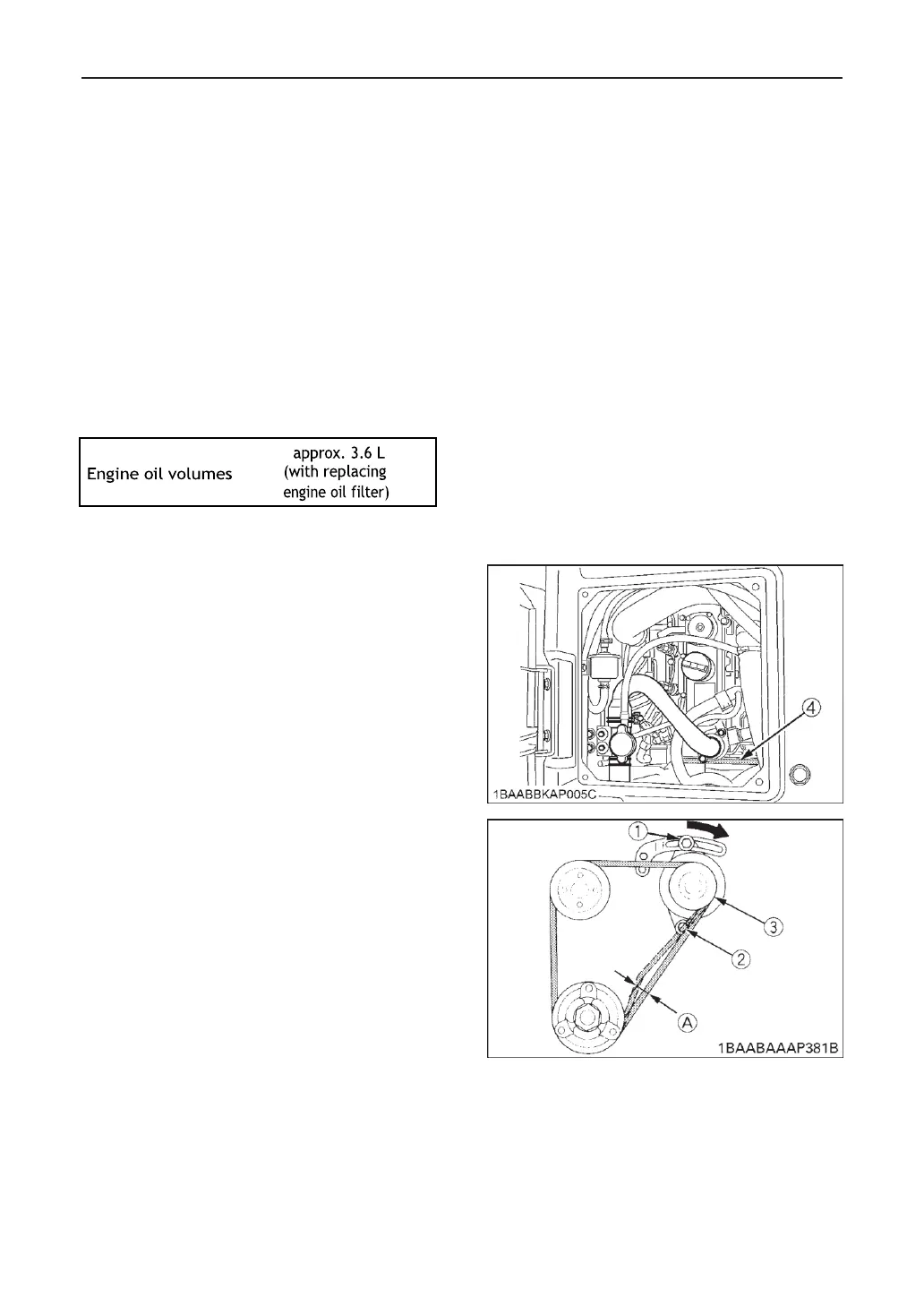

Checking the Fan Belt Tension
Check and adjustment of the fan belt
tension
CAUTION
To avoid personal injury:
First stop the engine and
remove the key.
After servicing, make sure to
replace the belt cover in its
original position.
1.
Press the fan belt down in the middle,
with a force of approx. 98N (10kgf). The
belt tension is correct if it deflects about
0.3in. (8mm). If otherwise, loosen bolt
(1)
and (2) and shift the dynamo in the
direction shown by the arrow.
2.
Replace the fan belt if worn out, cracked
or torn.
(1)
Bolt (A) about 0.28in. (7 mm)
(2)
Bolt
(3)
Dynamo
(4)
Fan belt
