1. Quick Start Instructions for Single Pilot AGC Operatation
1. Install the Amplifier with the DSIM-CC or DSIM-CF.
2. Attach the adapter cable to the DSIM, THEN plug the DSIM into the adapter cable. The
controller light should be solid blue indicating MGC mode (if not press mode button until
it is).
3. Set the input and output levels to the system design.
4. Set Reserve Gain:
a. Max out the gain by pressing the ‘+’ button on the controller.
b. Back off the gain based on the outside temperature:
5. Do a final balance of the downstream levels.
6. Press mode button once. The controller light will flash blue and red for approximately
45 seconds. When done the controller light will have a half second blue blink indicating
that the DSIM is in AGC mode.
7. Remove the controller THEN the cable from the DSIM, and the DSIM setup complete.

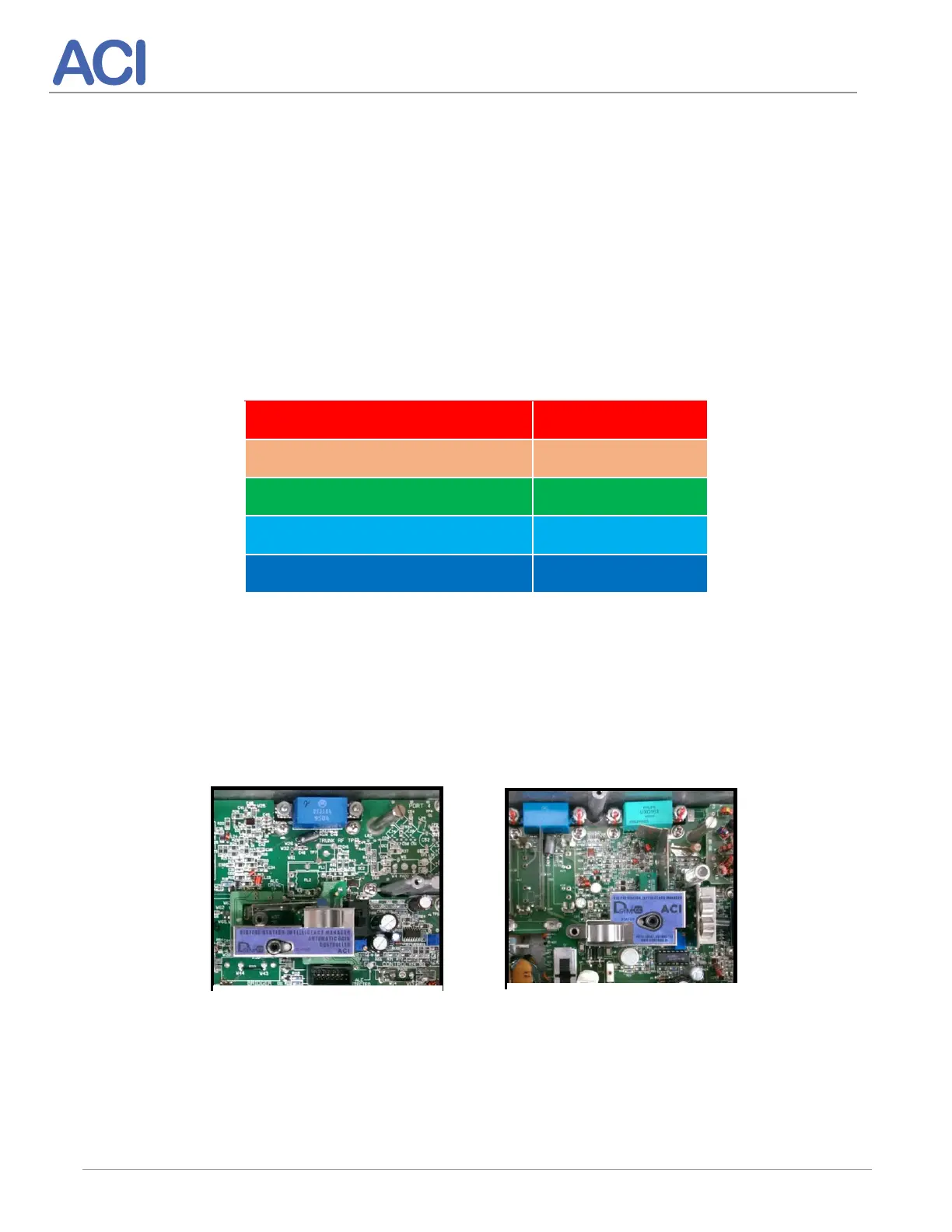

DSIM-CF and DSIM-CC Installed in the RF modules
(Shown with faceplate cover removed for clarity)
