ACLAS PP7X - Parallel Interface

16

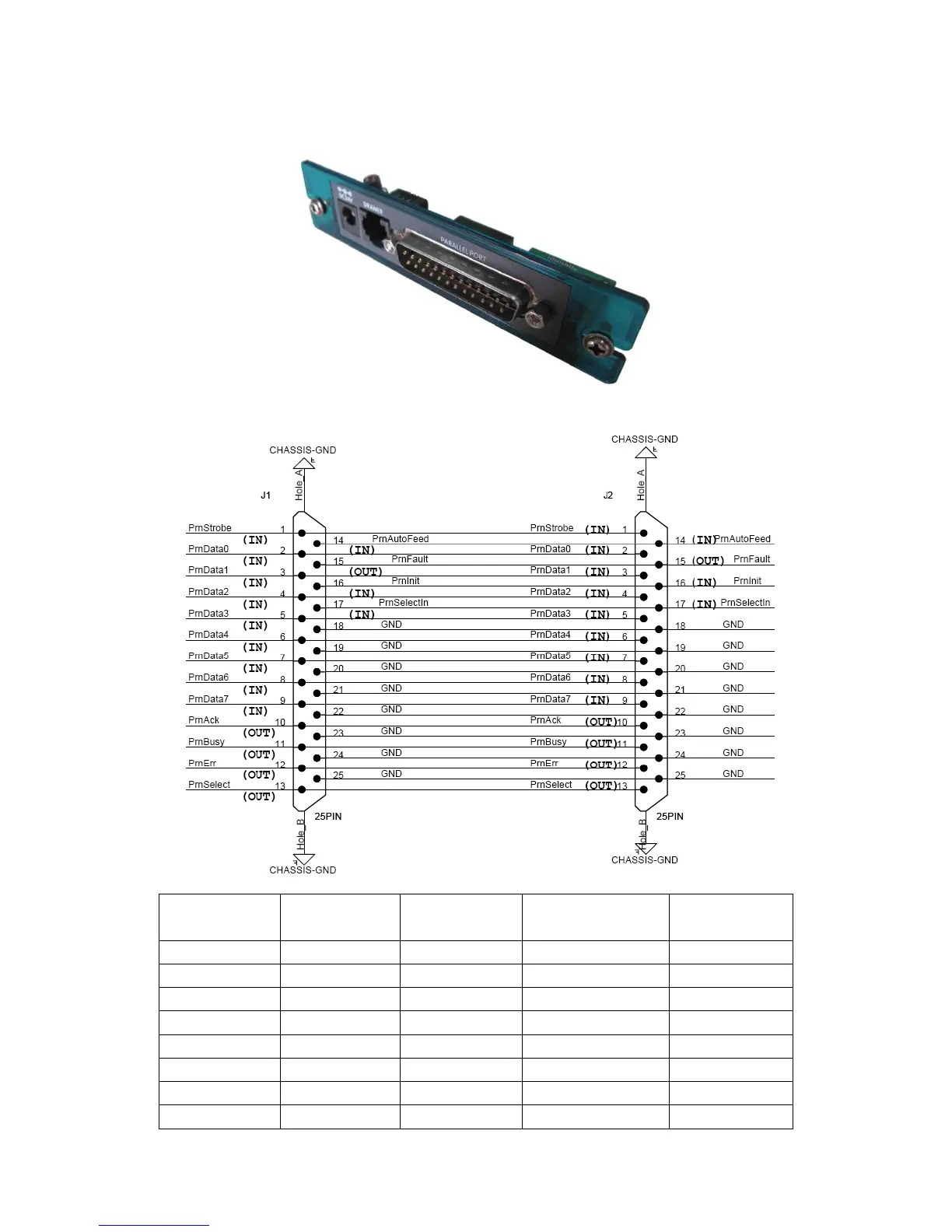

5.2 Parallel Interface
Pin No.
Source
Compatibility
Mode
Nibble Mode
Byte Mode
1
Host
nStrobe
HostClk
HostClk
2
Host/Printer
Data 0
-
Data 0
3
Host/Printer
Data 1
-
Data 1
4
Host/Printer
Data 2
-
Data 2
5
Host/Printer
Data 3
-
Data 3
6
Host/Printer
Data 4
-
Data 4
7
Host/Printer
Data 5
-
Data 5
8
Host/Printer
Data 6
-
Data 6
