6 DIP SWITCH

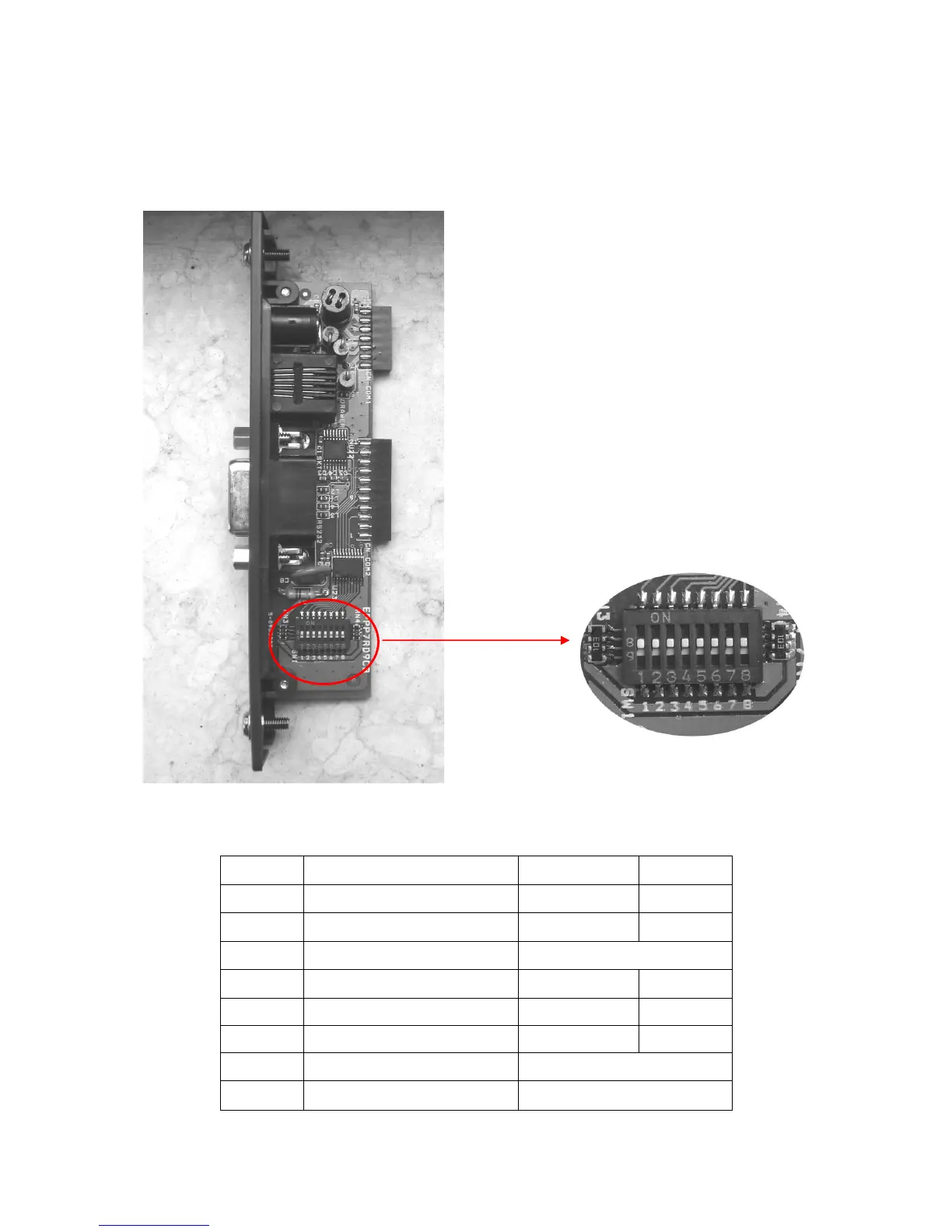

 The communication port module is with dip switch, please refer to the picture below:
 There are 8 Dip Switch altogether, each switch has its own function, please refer to the diagram below:
DIP-8
Function
ON
OFF
SW-1
Select cutter
Yes
No
SW-2
Select buzzer
Yes
No
SW-3
Reserve
SW-4
Select hardware flow control
Yes
No
SW-5
Select print density
Light
Dark
SW-6
Select print density
Light
Dark
SW-7
Select baudrate
SW-8
Select baudrate
The Dip Switch
