ACME LPB-4P - Main Function

 LPB-4P
 12B

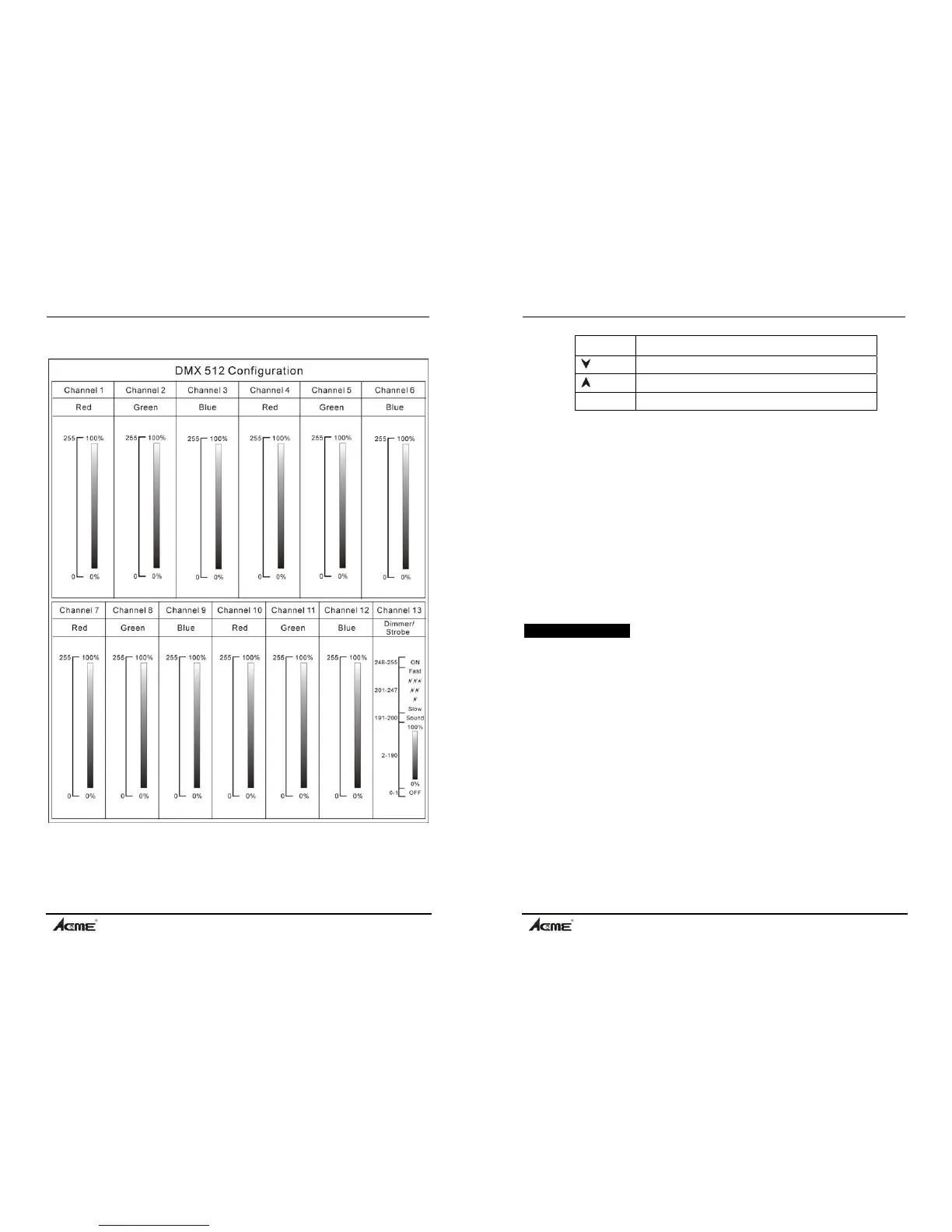

13 channels Mode:
 LPB-4P
 5B
Button
MENU To select the programming functions
DOWN
To go backward in the selected functions
UP
To go forward in the selected functions
ENTER To confirm the selected functions
Mains input
IEC socket and integrated fuse holder, connect to main power cable.
4-pin flight connector
Provide power and signal for LED panel (LP-212)
Only for remote control
By connect to the 1/4’’ microphone jack to control the package for Stand by, Function
and Mode function.
Microphone
Receive the music for sound control
DMX input/output
For DMX512 link, use 3-pin XLR plug cable to link the packages together.
3.2 Main Function
To select any of the given functions, press the MENU button up to when the required
one is showing on the display. Select the function by ENTER button and the display
will blink. Use DOWN and UP button to change the mode. Once the required mode
has been selected, press the ENTER button to setup or it will automatically return to
auto show without any change after one minute. To go back to the last functions
without any change press the MENU button. The main functions are showing below
