7.8
ENTER DIMENSIONS

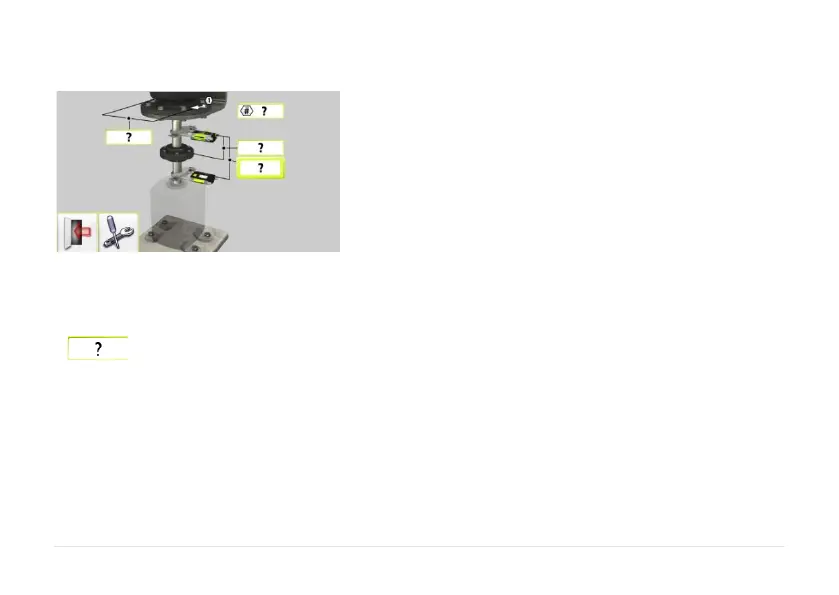

The screen displays the movable machine.
The traffic lights show green when the laser
hits the detector.
Select the dimension boxes to
enter dimensions.
Measure and enter dimensions and tolerance.
You must enter all the distances. The
distance between the sensors, the distance
between the center of the coupling and the M-
sensor, and the pitch circle diameter and the
number of bolts.
Up to 8 bolts can be entered.
MEASUREMENT METHOD
In the Vertical Shaft Alignment program,
machinery positions are calculated by taking
three points with 180° of rotation.
