7.9
MEASUREMENT POINT
REGISTRATION

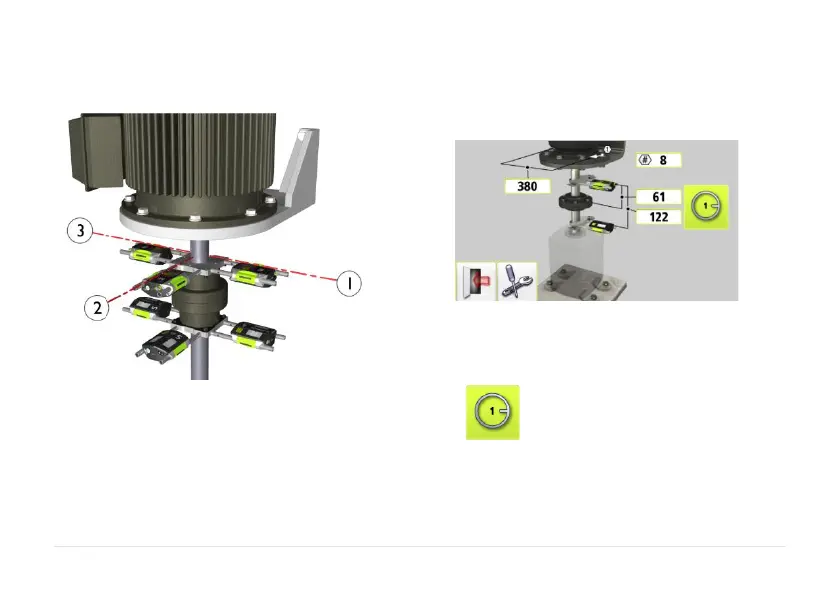

Place yourself at the position corresponding
to the second measurement position, where it
is easiest to turn the shafts through 180°.
The first measurement position must be at
bolt number 1.
Tip: Mark the positions 1, 2 and 3 before you
start measuring.
Set the sensors at approximately the same
rotational angle at the first measurement
position, with bolt number 1 to the right.
