10.3

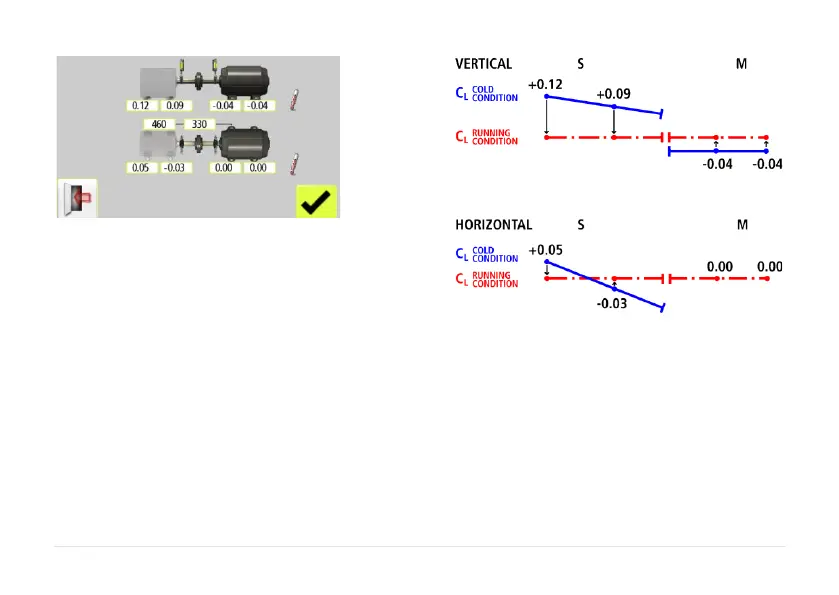

In the example above, the stationary machine
will shrink vertically by 0.12 mm at the rear
feet and 0.09 mm at front feet while the
movable machine will expand 0.04 mm while
running.
Horizontally, the rear feet will move 0.05 mm
towards you and the front feet will move 0.03
mm away from you while the movable
machine does not change its position while
running.
After having entered these feet values, the
system calculates how the movable machine
should be positioned (target position) in cold
condition in order to obtain perfect alignment
during running condition.
