10.4
ANGLE AND OFFSET VALUES

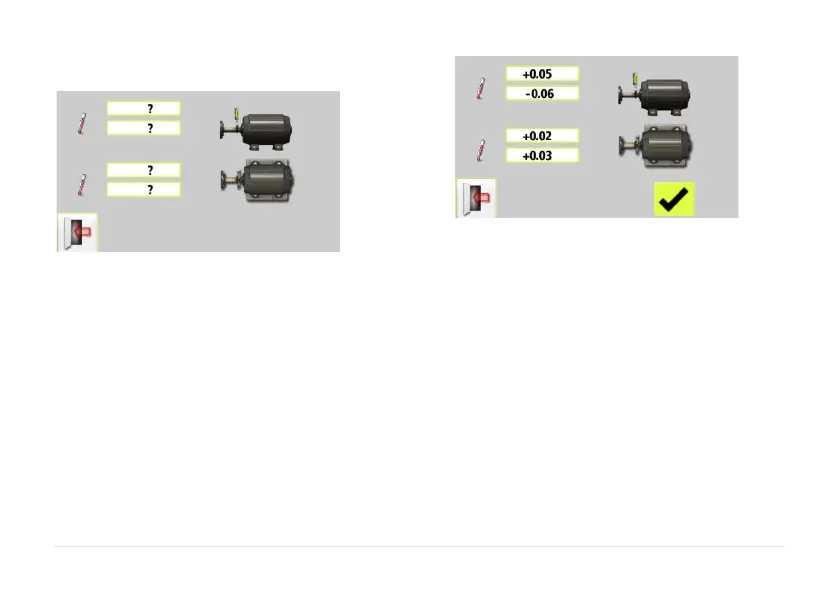

Touch the value boxes and enter target
values for the angles in mm/100 mm and
target values for the offsets in mm, or
mils/inch and mils, according to the pre-set
measurement unit.
In the example above, the movable machine
should be vertically adjusted to a position with
an angular misalignment of +0.05 mm/100
mm and an offset of
-0.06 mm.
Horizontally, the movable machine should be
positioned with a
+0.02 mm/100 mm angular misalignment and
a +0.03 mm offset, in cold condition to obtain
perfect alignment while running.
