ACORN 80 Maintenance & Service Manual
APPENDIX 10
Rationalisation Procedures

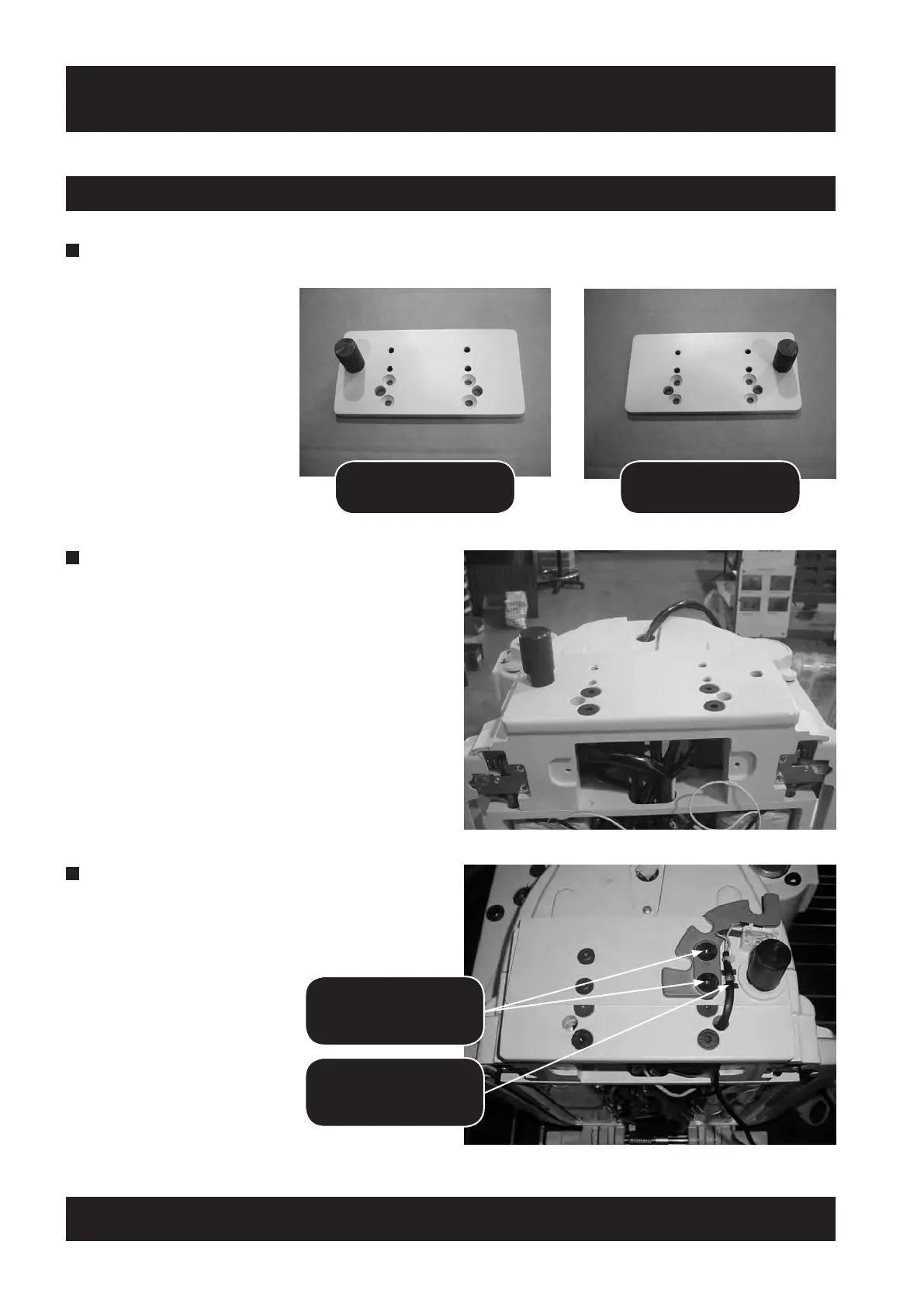

10.10 Seat Adaptor Plate Assembly Instructions
1 Ensure seat posts are free from paint.
SEAT POST WELDED
ON FOR LEFTHAND
SEAT POST WELDED
ON FOR RIGHTHAND
2 Secure the adaptor plate to the carriage using
4 x 901045 CSK screws and 4 x M8 nuts 900009.
3 Assemble plastic cover (1121284 L/H,
1121285 R/H), quadrant 105CT 09 and swivel
switch harness 1020794 and secure with 2 x
1040250 and 2 x 104CT24 torqued to 22Nm
using Loctite 270.
104CT24 TORQUE
22Nm AND APPLY
LOCTITE 270
NOTE USE CABLE
CLAMP TO SECURE
THE WIRE ROUTING
To Next Page
