ACORN 80 Maintenance & Service Manual
SECTION 7
Dismantling Components

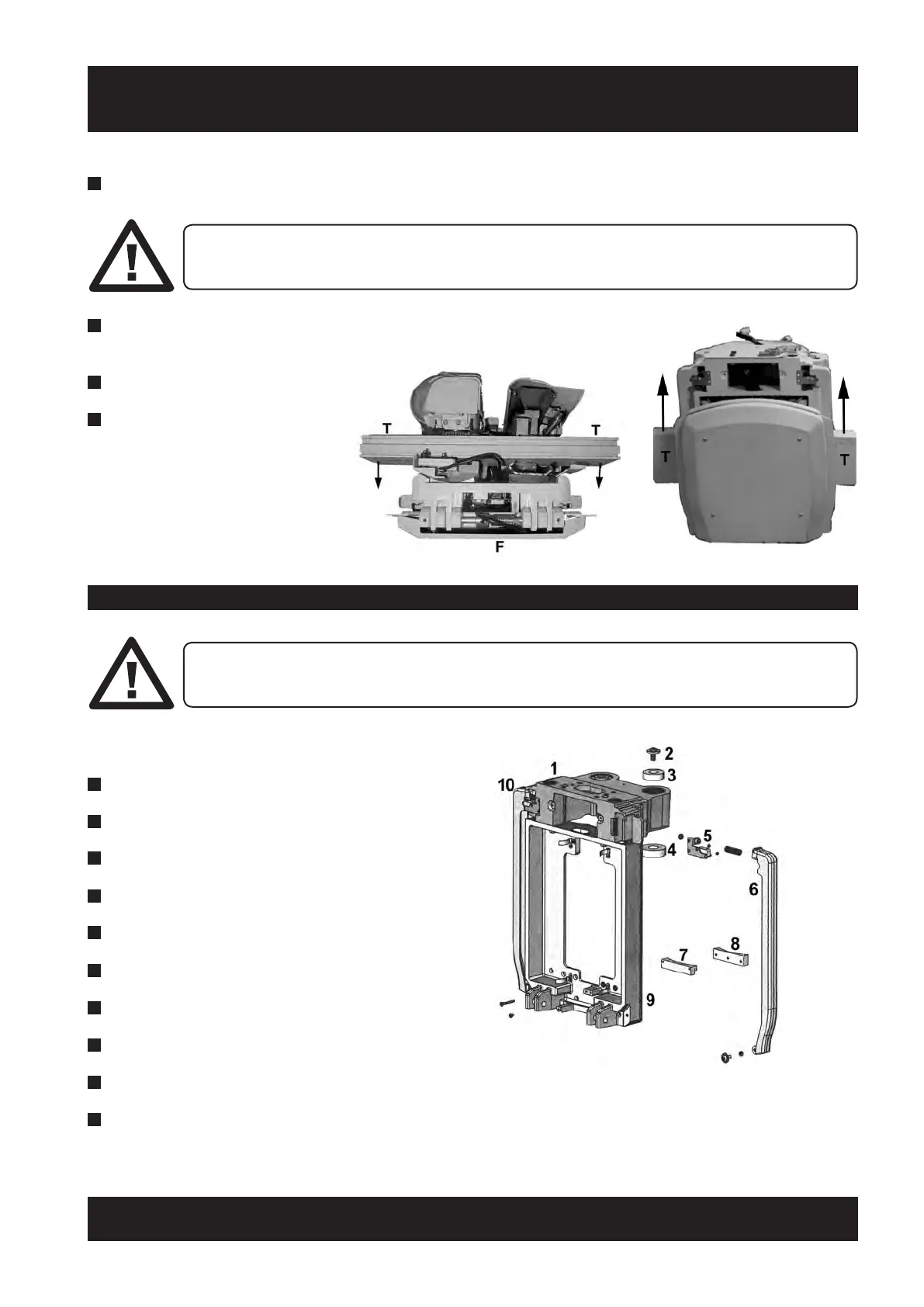

6 Whenever possible hold the transfer rail (T) to pick up the carriage.
7.6.3 Carriage Dismantling
WHEN THE TRANSFER RAIL AND CARRIAGE IS REMOVED ENSURE THAT THE POWER &
LEVELLING BOGIES DO NOT PIVOT IN AND TRAP YOUR FINGERS.
7 Place the carriage slowly down so that the footrest (F) is resting
on a clean surface.
8 Remove the transfer rail (T).
9 Drive Pinions and rollers
may now be inspected.
THESE ITEMS ARE SHOWN AS PART OF THE ASSEMBLY AND ARE NOT NECESSARILY
COMPLETE SPARE PARTS.
MAIN FRAME ASSEMBLY
1 Top Casting
2 Button Head Bolt
3 Bearing
4 Bearing
5 PSE Switch
6 PSE
7 Bearing Shoe
8 Bottom Bearing
9 Mainframe Casting
10 Right hand switch (PSE) shown
assembled

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
