ACORN 80 Maintenance & Service Manual
SECTION 7
Dismantling Components

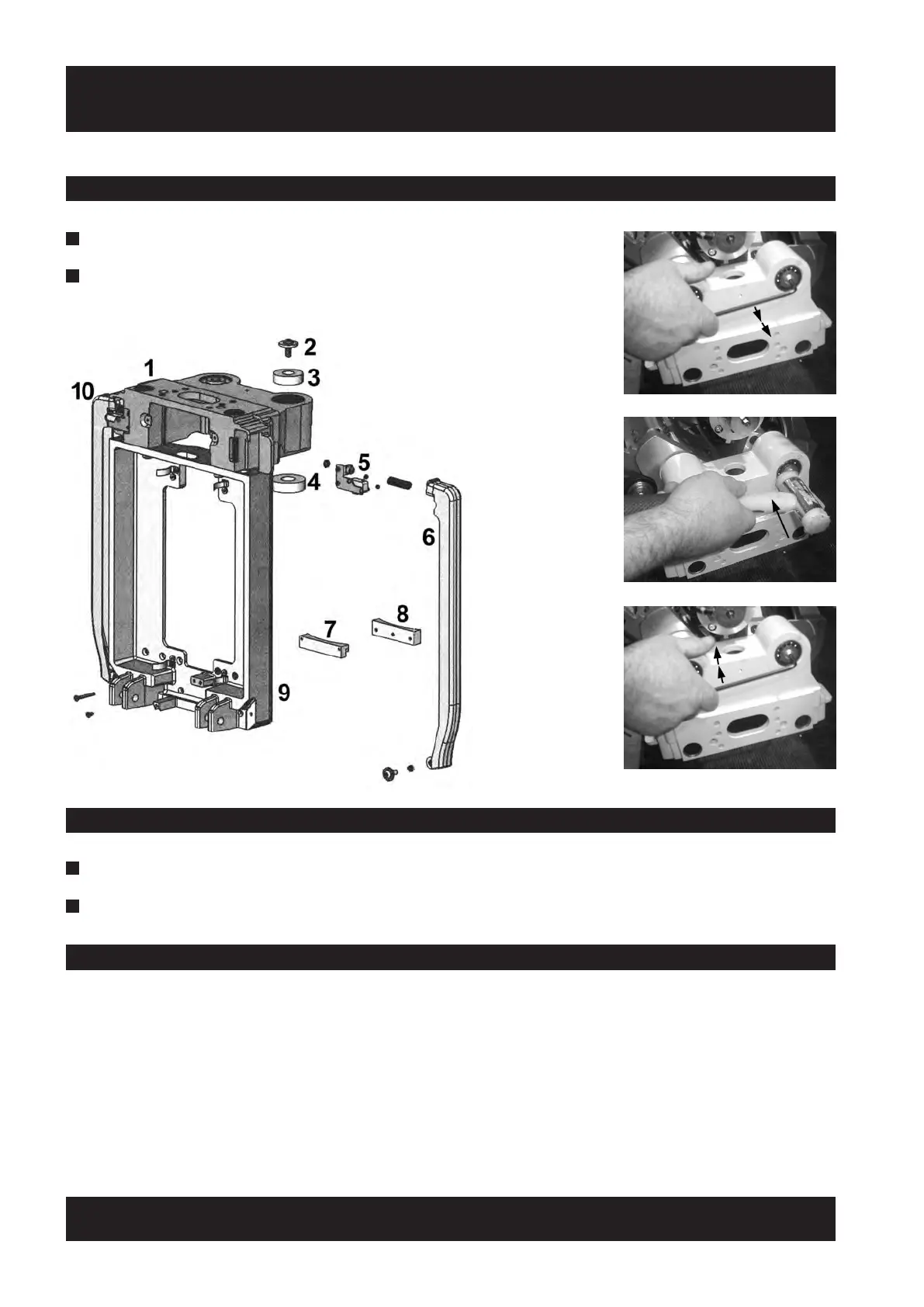

7.6.4 Removing Power & Levelling Bogies
7.6.5 Refitting Power & Levelling Bogies
1 Unscrew button head bolt (2) a few turns.
2 Tap the top of the button head bolt with a soft mallet to knock the
spindle out of the bearings (3 & 4), progressively unscrewing the bolt.
1
Push the Bogie spindle into the bearings and screw in the button head bolt.
2 Tighten the button head bolt to the required torque
Renew the PSE switches if required.
The left-hand switch (5 - shown removed) connects to the corresponding terminal marked PSE on the
main PCB.
The right-hand switch (10 - shown assembled) connects to the corresponding terminal marked PSE on the
main PCB.
7.6.6 Carriage PSE Switches
