ACORN 80 Maintenance & Service Manual
SECTION 7
Dismantling Components

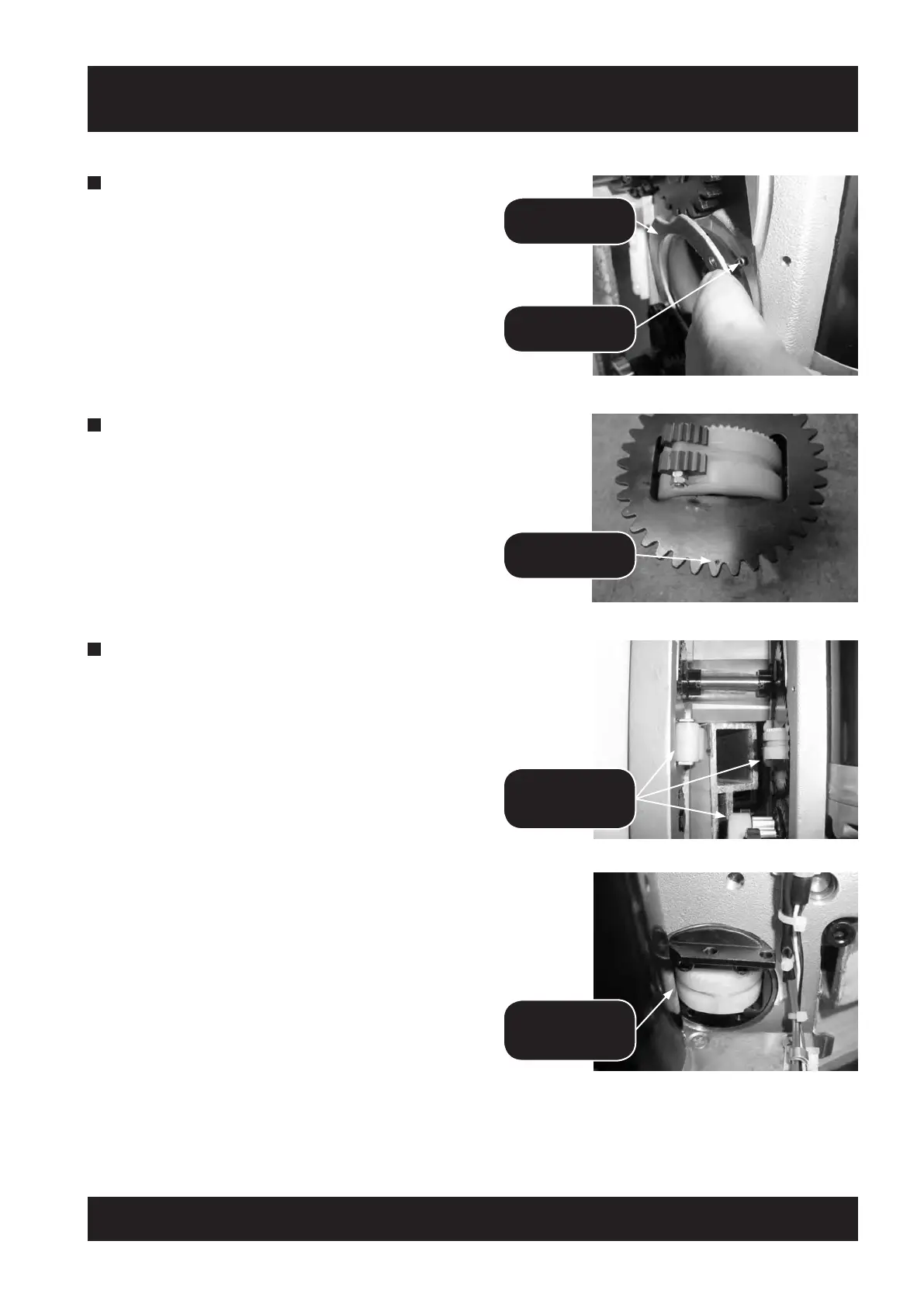

2 Assemble the thrust washer to the power bogie
casting aligning with location pin. Ensure that the
friction face is facing the rail.
3 Position the hub to the casting in alignment with the
other rollers. Ensure the centre-pop mark on the hub
is positioned to the bottom.
4 Secure the hub to the casting by re-assembling the
retainer ensuring that the rollers are aligned
FRICTION
FACE
LOCATION PIN
CENTRE MARK
THESE
ROLLERS MUST
BE ALIGNED
RE-ASSEMBLE
RETAINER AS
ABOVE

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
