ACORN 80 Maintenance & Service Manual
SECTION 7
Dismantling Components

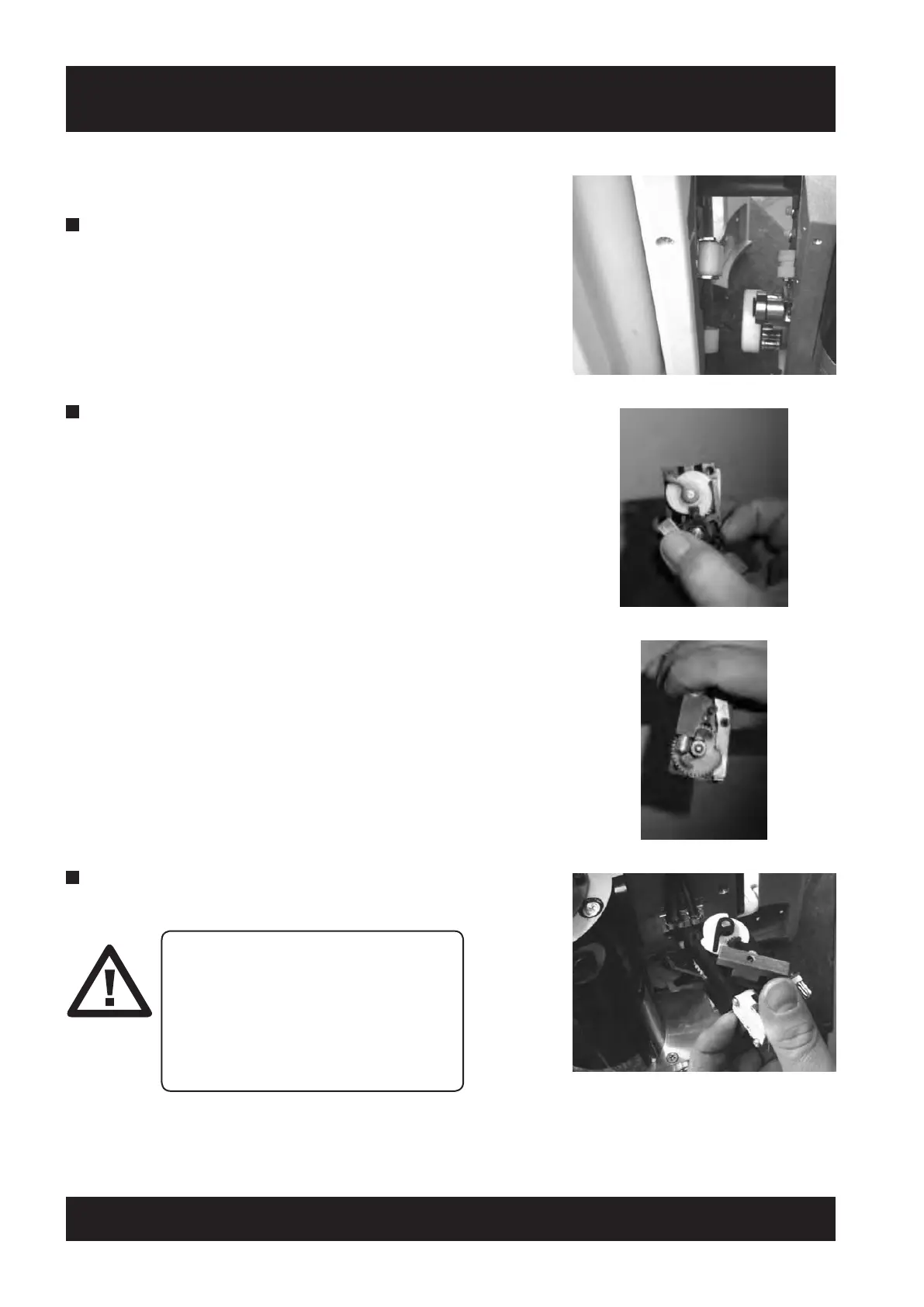

To Refit the Body
1 Hold the hub in place from inside the power bogie
and refit the osg bracket to the rear of the hub.
2 Prepare the osg body with the regulator in position as
shown on the top of the osg body.
The latches should be positioned as shown from underneath
the osg body
3 Offer the osg body up to the rear of the hub and align the
mounting holes with the bracket.
TO CONFIRM THE CORRECT FITTING,
CHECK FOR PRESSURE BY PRESSING
THE OSG WEDGES AGAINST THE OSG
HUB. RESISTANCE TO THE MOVEMENT
OF THE WEDGES SHOULD BE FELT AS
THEY PRESS AGAINST THE PLUNGER
SPRING, AND THERE SHOULD BE
VISIBLE MOVEMENT OF THE PLUNGER.
