ACORN 80 Maintenance & Service Manual

SECTION 7

Dismantling Components

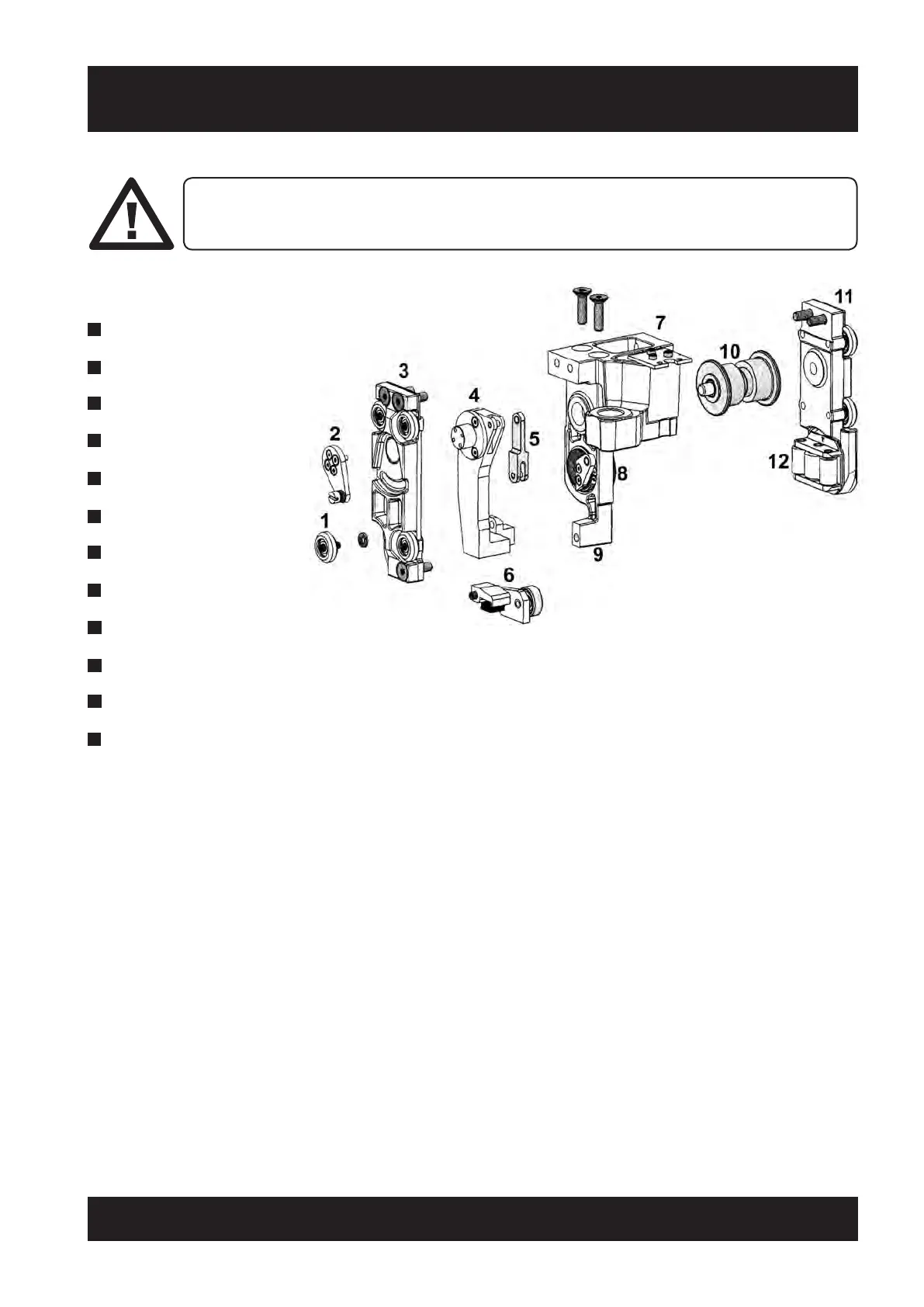

LEVELLING BOGIE SLIDE ASSEMBLY

1 Vee Wheel Assembly

2 Wheel Steering Plate

3 Rear Slider

4 Anti Tilt Hook

5 Anti Tilt Link

6 Anti Tilt Wheel Assembly

7 Slider Top

8 Side Wheel Assembly

9 Mid Slider

10 Top Roller

11 Front Slider

12 Side Wheel Assembly

THESE ITEMS ARE SHOWN AS PART OF THE ASSEMBLY AND ARE NOT NECESSARILY

COMPLETE SPARE PARTS.
