ACORN 80 Maintenance & Service Manual
APPENDIX 10
Rationalisation Procedures

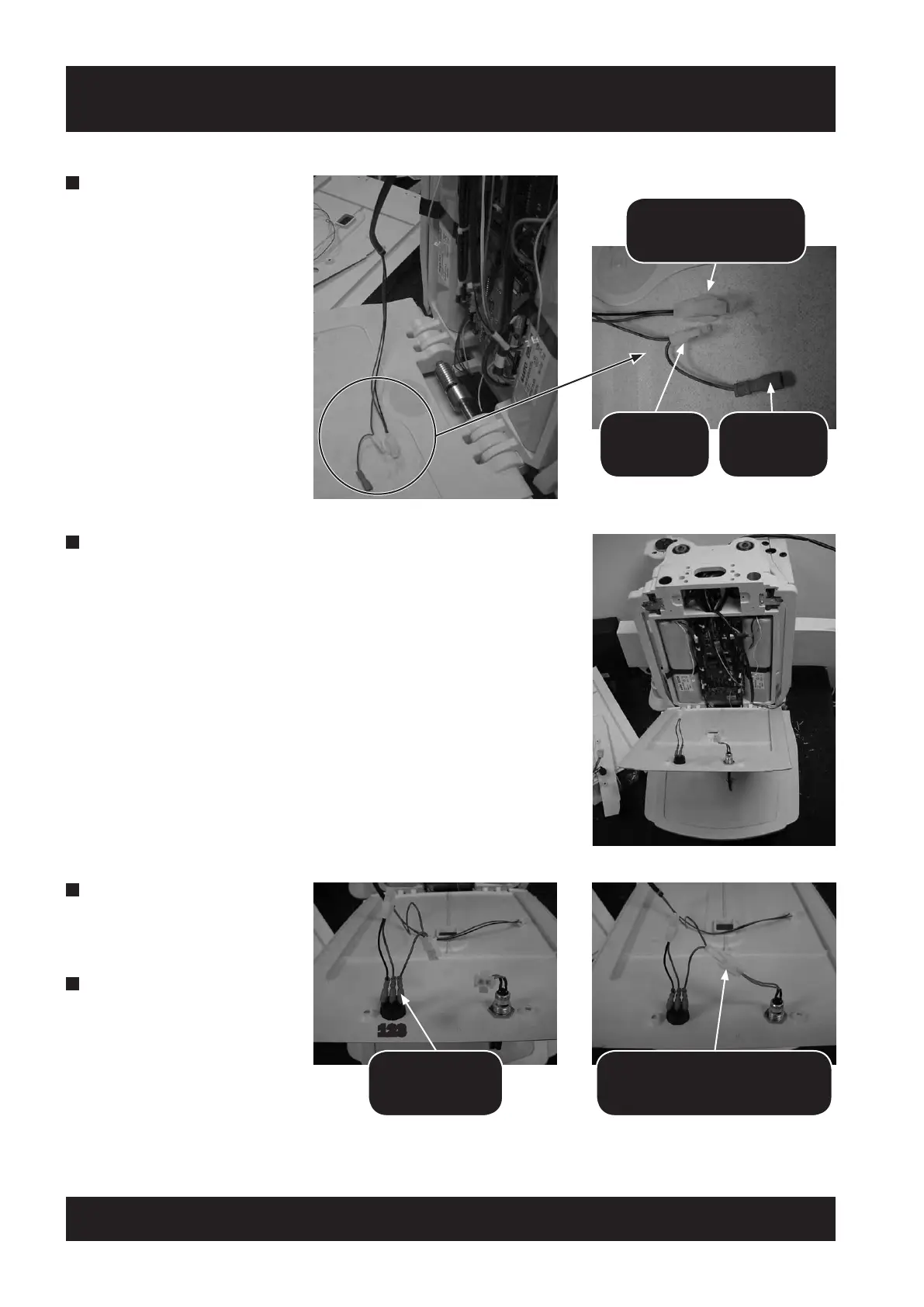

6 Ensure the 2 block
connectors and Red plug
have plenty of cable
passed through to give free
movement.
7 Assemble front cover (1249000) assembly as shown.
8 Connect the red plug
of the Harness to the
ON/OFF switch
connector Pin 3 as shown.
9 Connect Keyswitch Male
block connector to Female
block connector on Arm
harness.
FEMALE BLOCK
CONNECTOR
MALE BLOCK
CONNECTOR
RED PLUG
123
RED PLUG
CONNECTED TO
PIN 3
MALE BLOCK CONNECTOR TO
FEMALE BLOCK CONNECTOR
ON ARM HARNESS

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
