Acorn 80 User Manual

87
ACORN 80 Maintenance & Service Manual
APPENDIX 10
Rationalisation Procedures

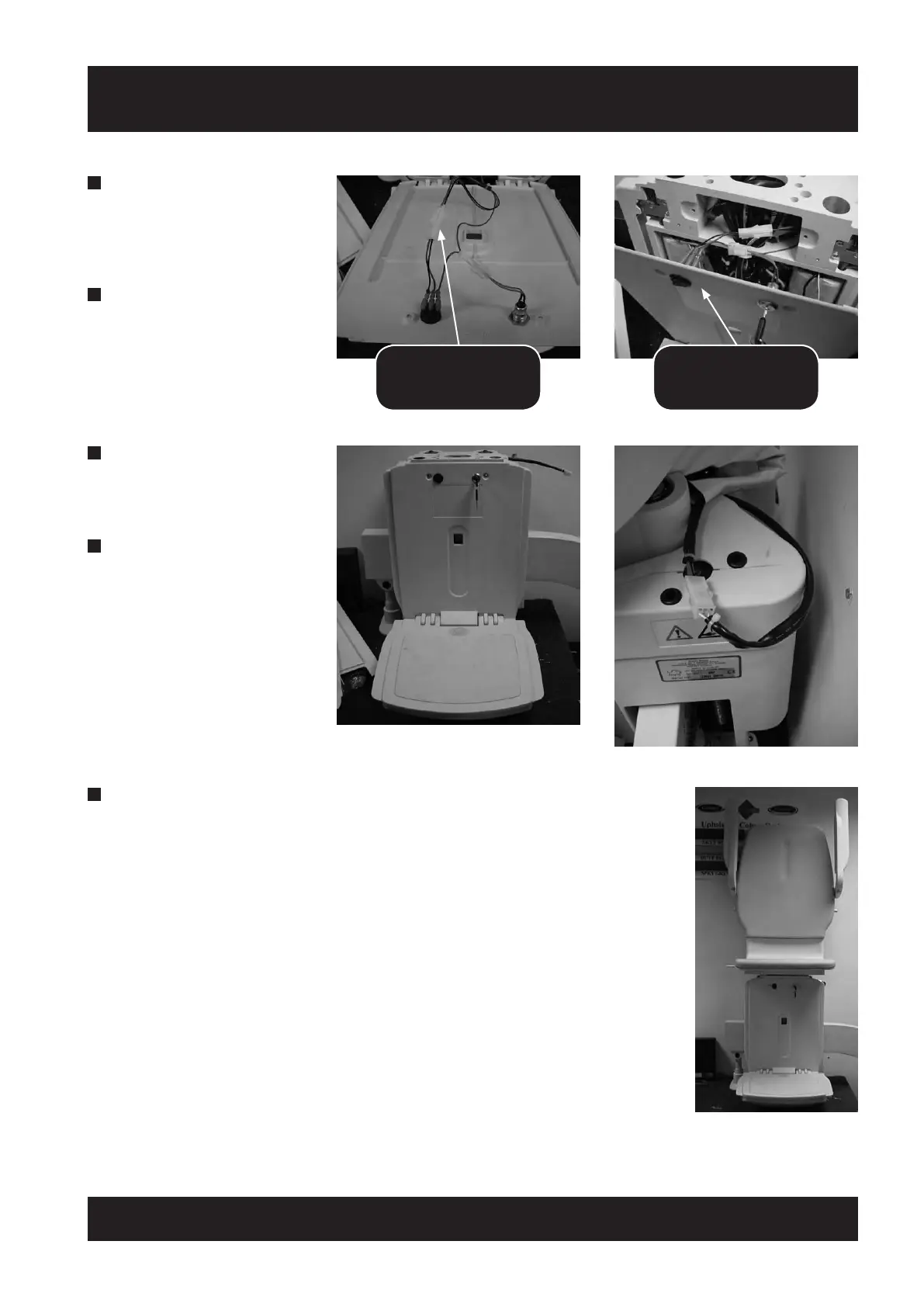

10 Connect the Male block
connector of the ON/
OFF switch to the Female
block connector on the
harness.
11 Position excess harness
cable into the top of the
mainframe as shown.
ON / OFF MALE
BLOCK CONNECTOR
TO FEMALE
EXCESS WIRING IN
TOP OF MAINFRAME
12 Secure Front cover
assembly to the carriage
using 2 m4x10 Pozi screws
(902101).
13 Place new seat onto
carriage and connect the
seat harness to the
carriage harness as shown.
14 Complete Seat and carriage with upgrade.

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
