ACORN 80 Maintenance & Service Manual
APPENDIX 10
Rationalisation Procedures
10.7 Replacing On / Off Switch With Blanking Plate

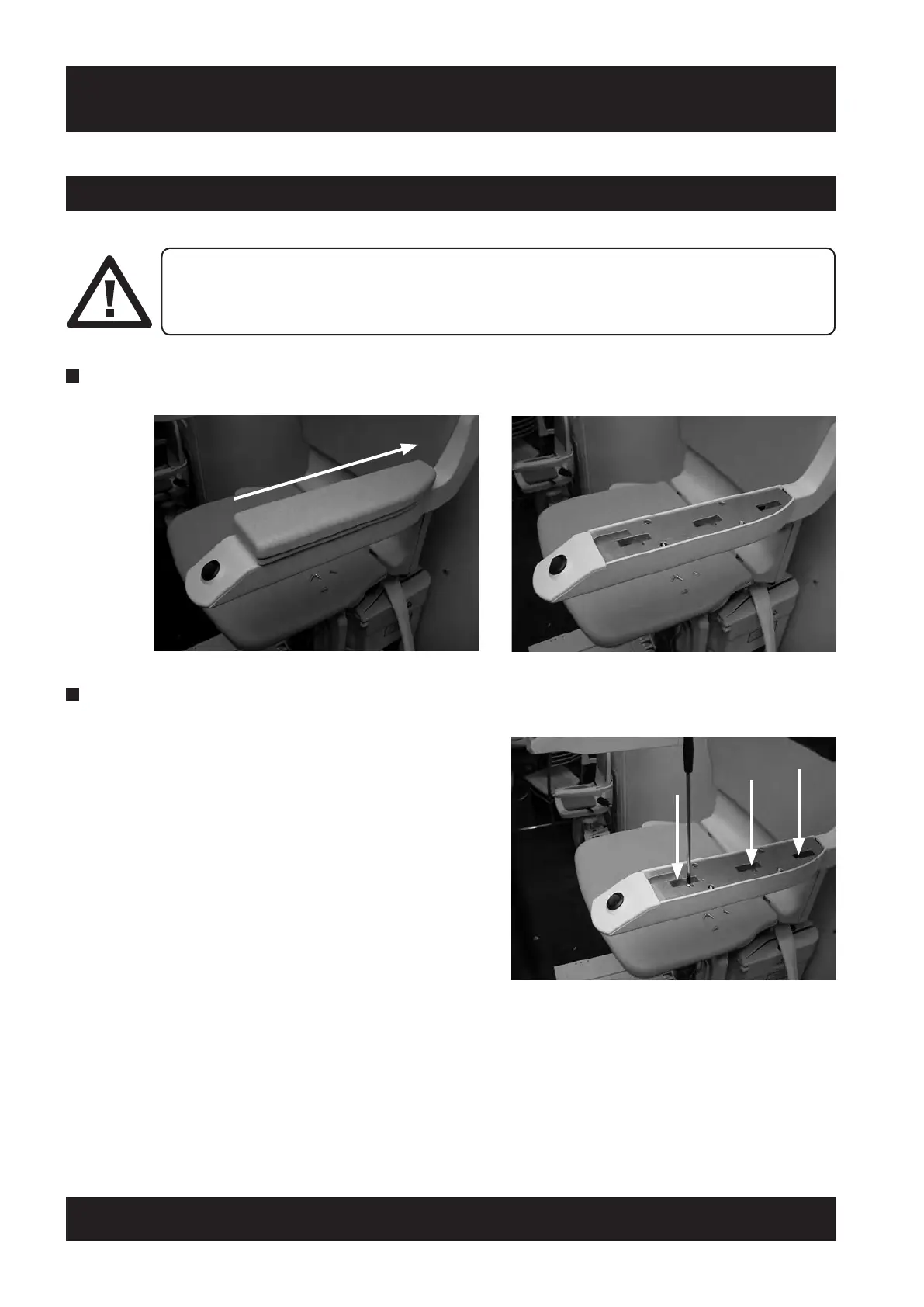

1 Push on the front of the seat arm pad to release, then slide and remove pad completely.
THIS SPEC SHOWS HOW TO UPGRADE A SEAT TO THE NEW REVISION. BELOW SHOWS AN
OLD REVISION SEAT WITH THE ON/OFF SWITCH LOCATED ON THE ARM, THIS WILL NOW
BE LOCATED ON THE CARRIAGE AND A BLANKING PLATE WILL BE POSITIONED WHERE THE
SWITCH PREVIOUSLY WAS.
2 Unscrew and remove the 3 screws indicated in the image below.
