89
ACORN 80 Maintenance & Service Manual
APPENDIX 10
Rationalisation Procedures

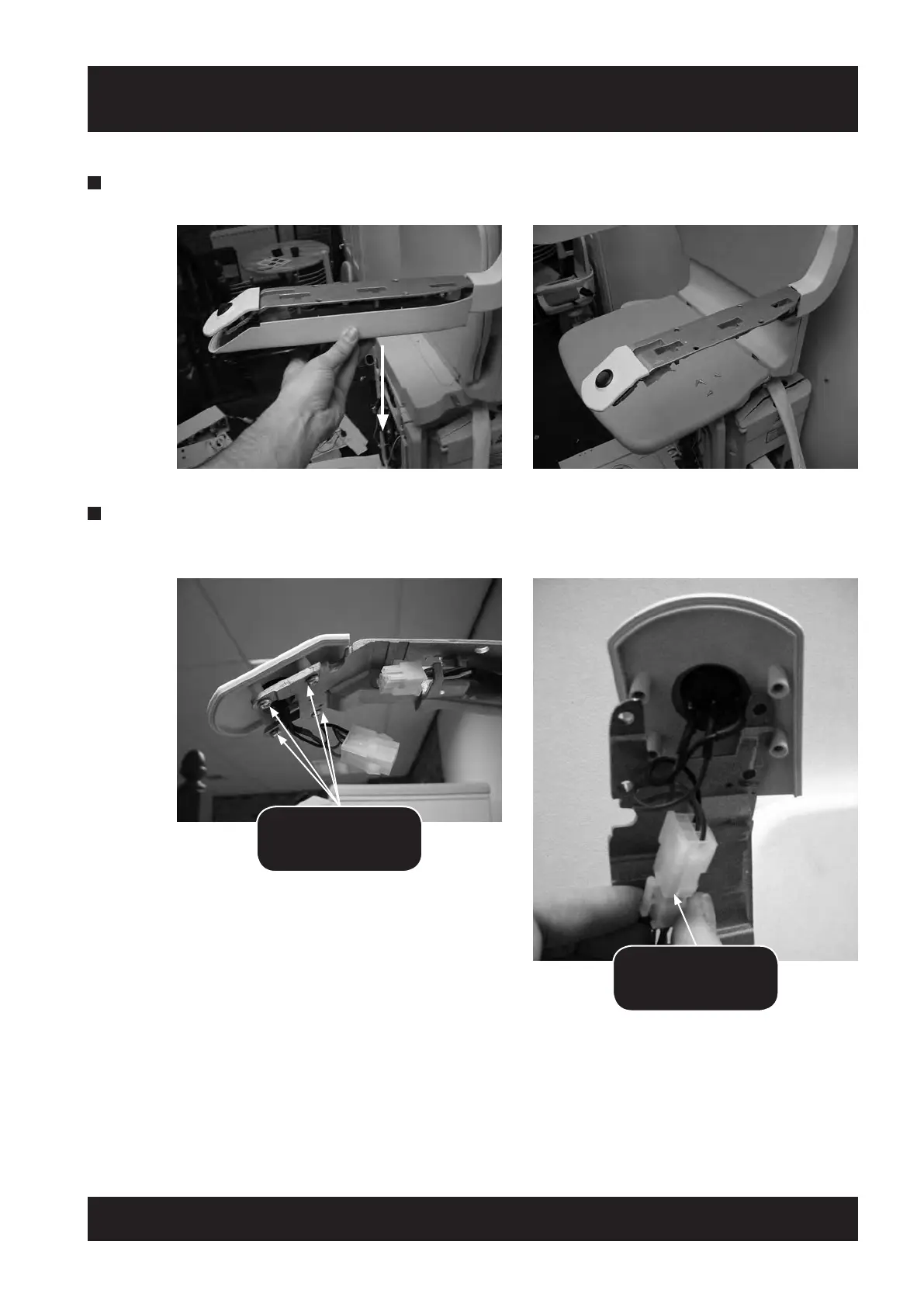

3 Pull on the arm cover to release from the casting. Remove the cover.
4 Disconnect Arm harness from the ON/OFF switch by disconnecting the block connectors as shown, and then
remove the 4 screws securing the ON/OFF switch in position.
REMOVE 4 POZI
SCREWS
DISCONNECT
HARNESS FROM
SWITCH
