Acorn CB200 - Cabinet Specifications

Written by: R Patel Checked by: AJC
Document No.: CBAPP Rev.: 7 Page 2 of 11 Date: 06/06/2003

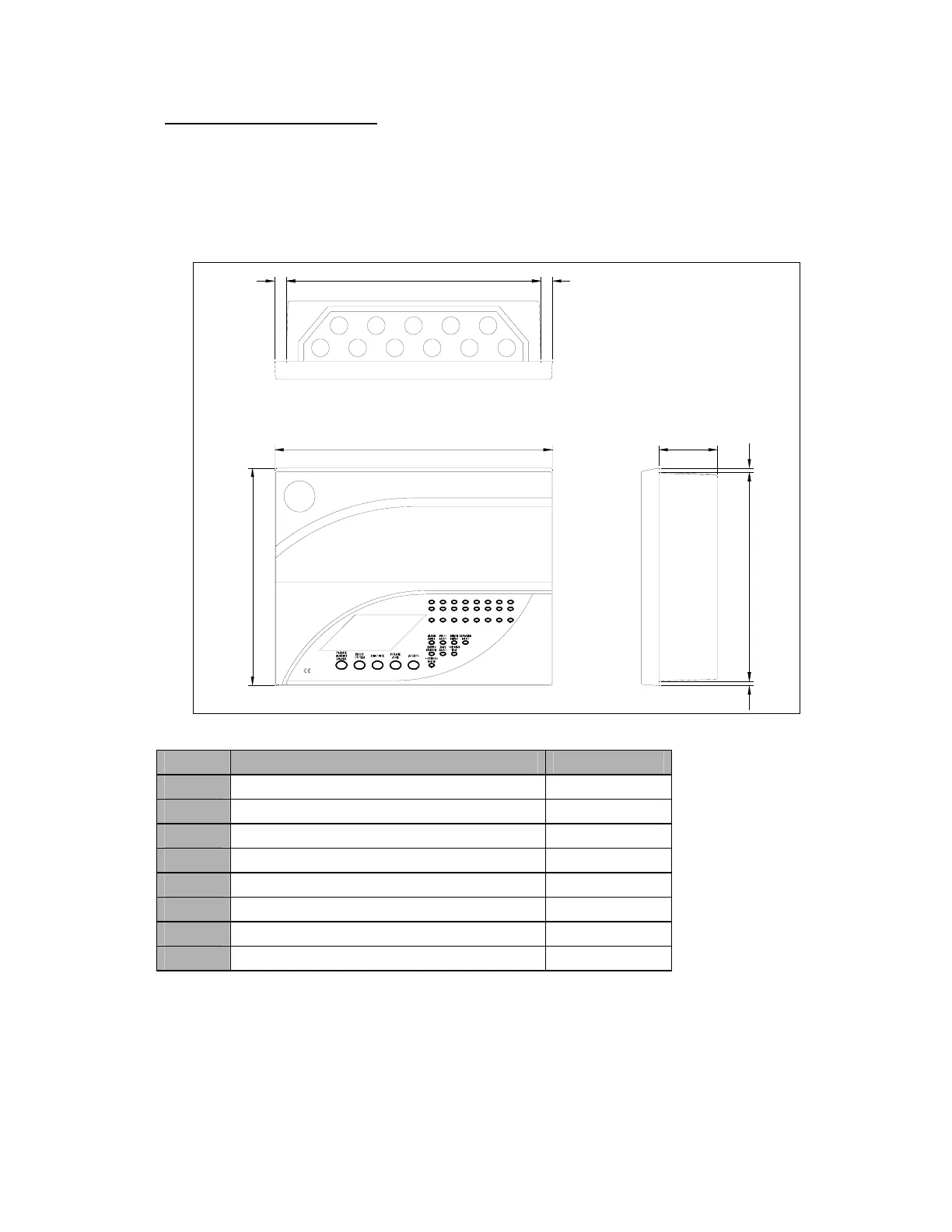

1. Cabinet Specifications
All cabinets are manufactured from polycarbonate with a satin textured finish. Eleven top
entry grommets are provided on a removable gland plate.
Cabinet colour: RAL7035 Textured (light grey)
12
FAULT
FIRE
Z
O
N
E
L
O
C
A
T
I
O
N
345678
1 2 3 4 5
cb200
e
d
c
a
b
f
f
gg
Description Size
a
Back box height 235mm
b
Back box width 287mm
c
Back box depth 66mm
d
Front cover height 245mm
e
Front cover width 313mm
f
Bezel overhang - top/bottom 5mm
g
Bezel overhang - left/right 13mm
Protection plugs = 11
