Acorn CB200 - Panel Hardware Specifications

Written by: R Patel Checked by: AJC
Document No.: CBAPP Rev.: 7 Page 3 of 11 Date: 06/06/2003
1.1.1 Order Codes & Descriptions
Part No Description
2500/383
CB200 1 zone conventional control panel
2500/384
CB200 2 zone conventional control panel
2500/385
CB200 4 zone conventional control panel
2500/386
CB200 8 zone conventional control panel
2500/967
CB200 8 zone repeater with power supply
2500/968
CB200 8 zone repeater powered from panel
2. Panel Hardware Specifications

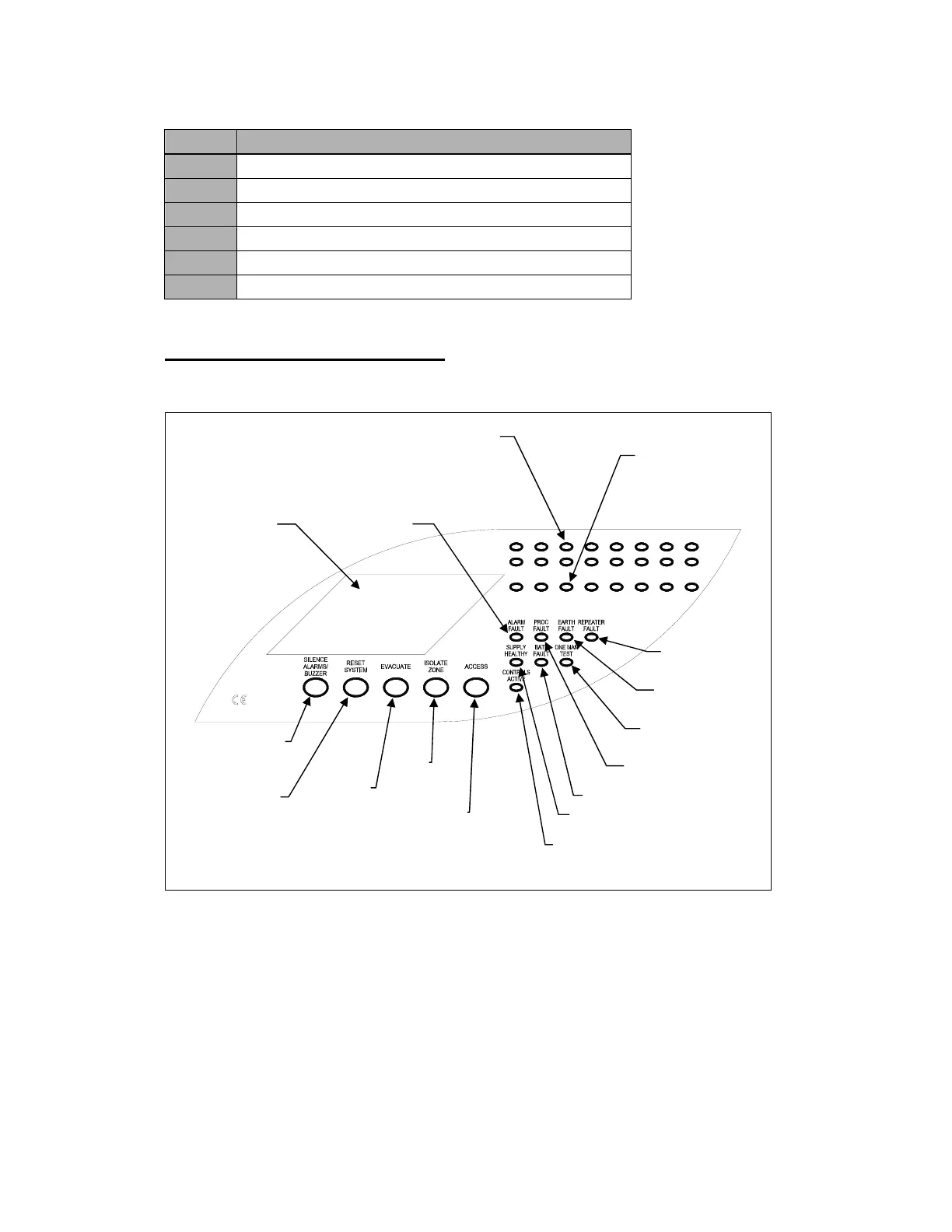

2.1 User Controls and Indications (8 zone illustrated)
12
FAULT
FIRE
Z
O
N
E
L
O
C
A
T
I
O
N
34
5
678
1 2 3 4 5
Slide in card to
add text zone
identification.
Zone fire LEDs
illuminate flashing
when a zone has been
triggered into fire.
Illuminates steady after
silence alarms has
been pressed.
Zone fault LEDs
illuminate flashing with
any zone fault or
device removed.
Illuminates steady
when zone is isolated.
Silence alarms/buzzer
control. Press to silence
alarm circuits or fault
buzzer.
Panel system control to
reset system after
silence alarms has
been pressed.
Functions as test LEDs
at any other time.
Evacuate
control operates
alarms circuits
(but not aux fire
output). Press
to operate,
press again to
stop.
Zone
isolate
control.
Access control. Press
5 to access user
control facility then
press 14, controls are
then enabled. Repeat
above to disable
controls.
Flashes when an alarm
circuit is in fault.
Illuminates when controls are active.
Supply healthy LED illuminates when both
mains and battery supplies are healthy.
Flashes when a battery supply fault occurs.
Flashes when engineer's
one man test is active.
(4-8 zone only).
Flashes when a processor
fault occurs.
Flashes when an
earth fault occurs
(4-8 zone only).
Flashes when a
repeater fault occurs
(4-8 zone only).
