12
AMC72l single phase electric energy:
V o l t a g e
V o l t a g e , c u r r e n t a n d
f r e q u e n c y
C u r r e n t
V o l t a g e , c u r r e n t a n d
p o w e r f a c t o r
P o w e r ,
p o w e r f a c t o r
A p p a r e n t p o w e r

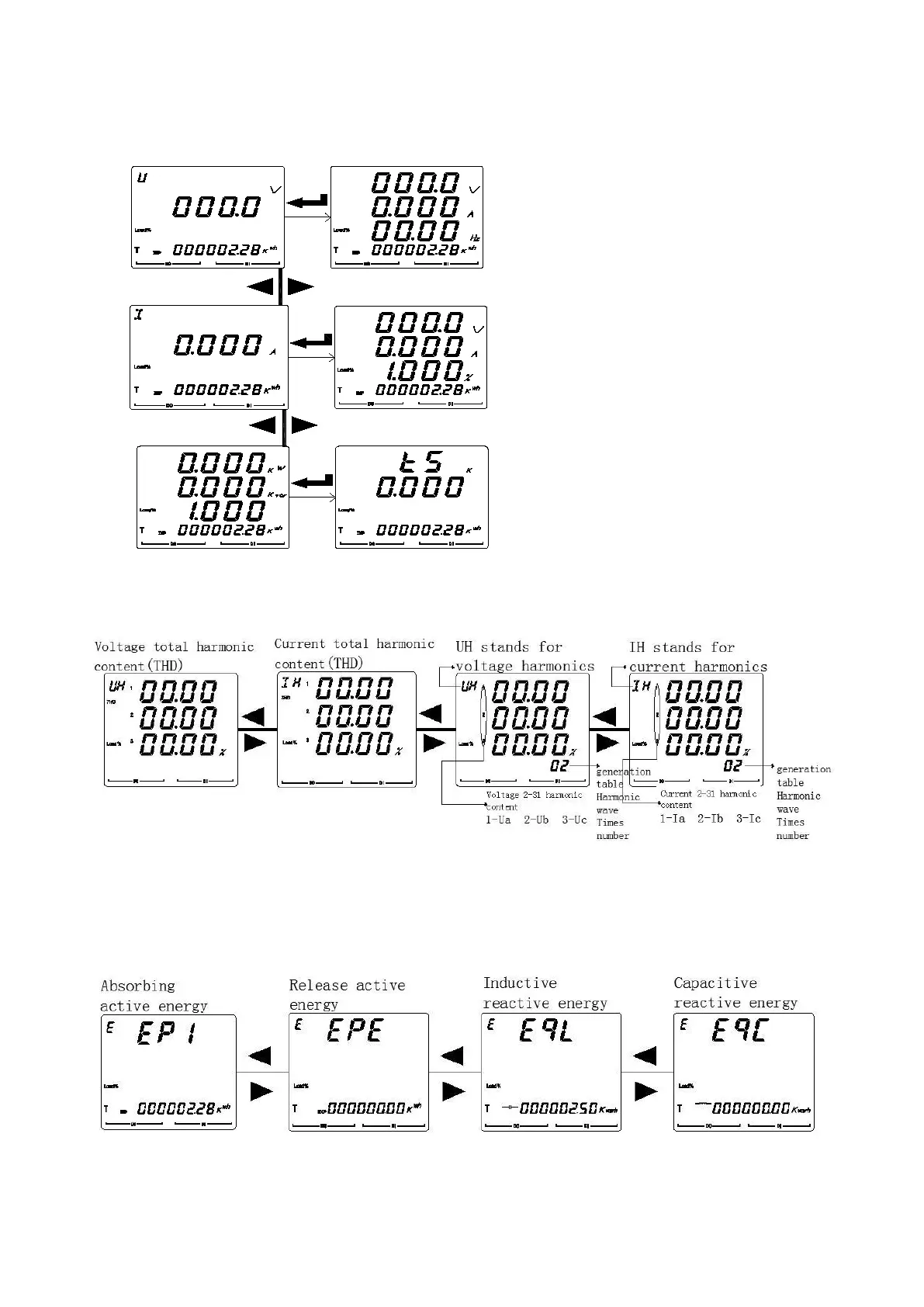

Figure 19
5.2.5 View the harmonic parameters of the AMC72L/96L meter as shown in Figure 20.
Figure 20.
Note: Only the 96 shape has the function of fractional harmonics; press the left and right buttons to switch the
harmonic content of 2-31 times.
5.2.6 View the power parameters of the AMC72L/96L as shown in Figure 21.
Figure 21
