5. Operating instructions
SET

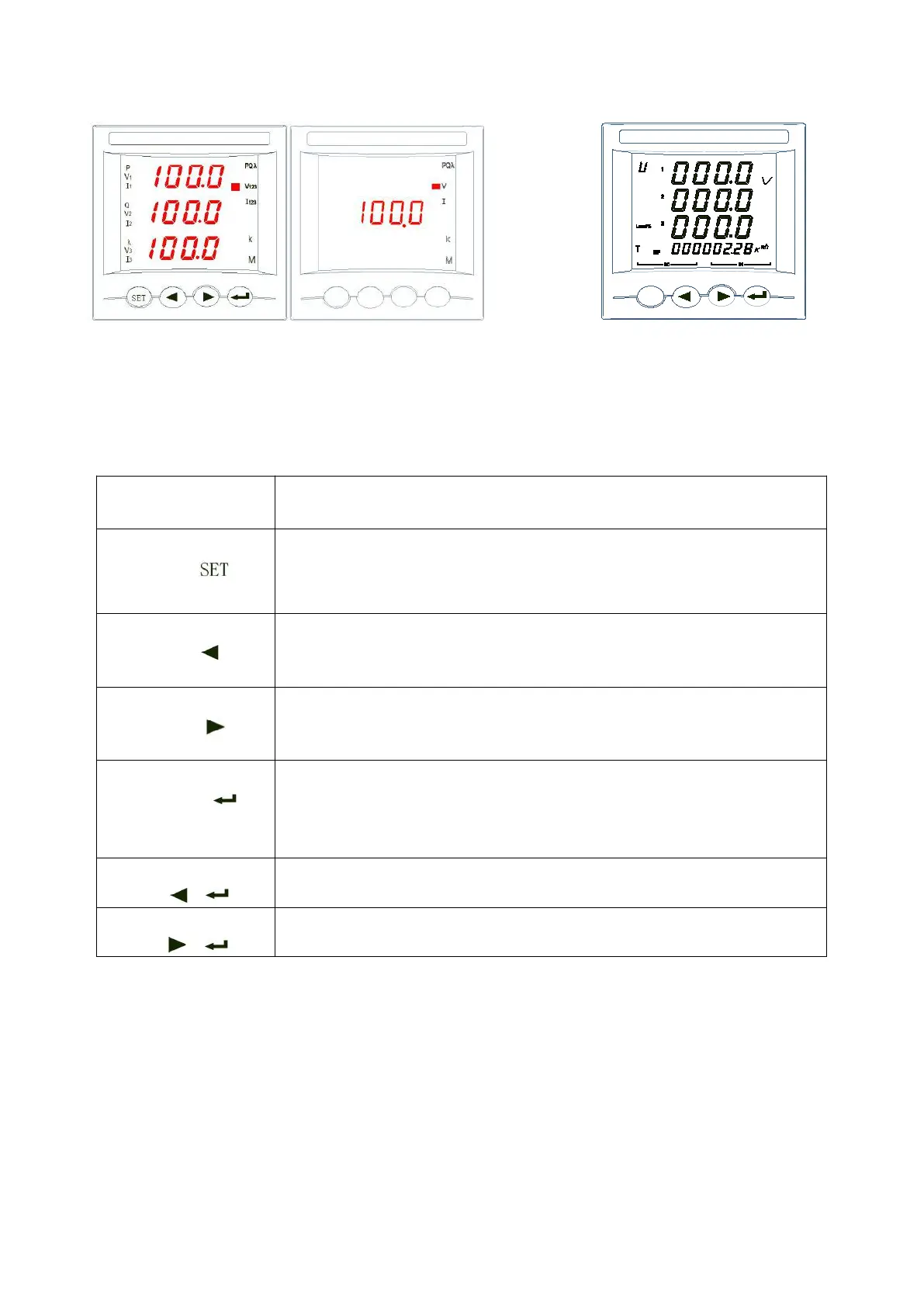

Figure 11 LED front panel Figure 12 LCD front pane
5.1 Explanation for keypad functionality
Four keys of AMC series intelligent power collection and monitoring device separately indicate SET
key, LEFT key, RIGHT key, ENTER key from left to right.
Table 4 key function description
Panel key category
Key Function
SET key ( )
Under measurement mode, Press This key enter programming mode, meters hint
Input password PASS, after Input correct password, set up meters programming;
Under programming mode, used for Return to previous menu。
Left key( )
Under measurement mode, used for switching Display item;
Under programming mode, used for switching same class menu or ones place
reduced。
Right key( )
Under measurement mode, used for switching Display item;
Under programming mode, used for switching same class menu or ones place
increase。
ENTER key( )
Under measurement mode, when Displaying Electric energy data, press This key
can look over time sharing multi-rate Electric energy(if any);
Programming mode, used for menu item selection confirm and parameter
revision confirm。
Left key+ENTER
key( + )
Programming mode, this key combination is used for the reduction of hundreds
of digits.
Right key+ENTER
key( + )
Programming mode, this key combination is used to increase the hundred digits.
Note: When using the combination key, you can hold down the Left and Right key and then press the Enter
key.
