Acrel AMC Series - Programming Example

15
Year
Month,day
Set current time
Time
Minutes, seconds
Meter version number and number
5.3.2 LCD display instrument backlight control menu
Table 6
First menu
Second menu
Tertiary menu
Description
0-9999
When set to 0, the backlight
is always on. When set to
1-9999, the backlight is off
after 1-9999 seconds.
5.4 Programming example
The programming example use flow chart to introduce how to change some options of programming menu
such as current times, transducer setting etc.
Note: After completing setting or selecting, press ENTER button to confirm, after confirming, pressing
SET key until SAVE/YES page appear, now, the ENTER button must be pressed to confirm, otherwise, the
setting is invalid.
5.4.1 How to modify the current ratio
For example: the signal is 1000A/5A meter, the ratio setting is shown in Figure 24.

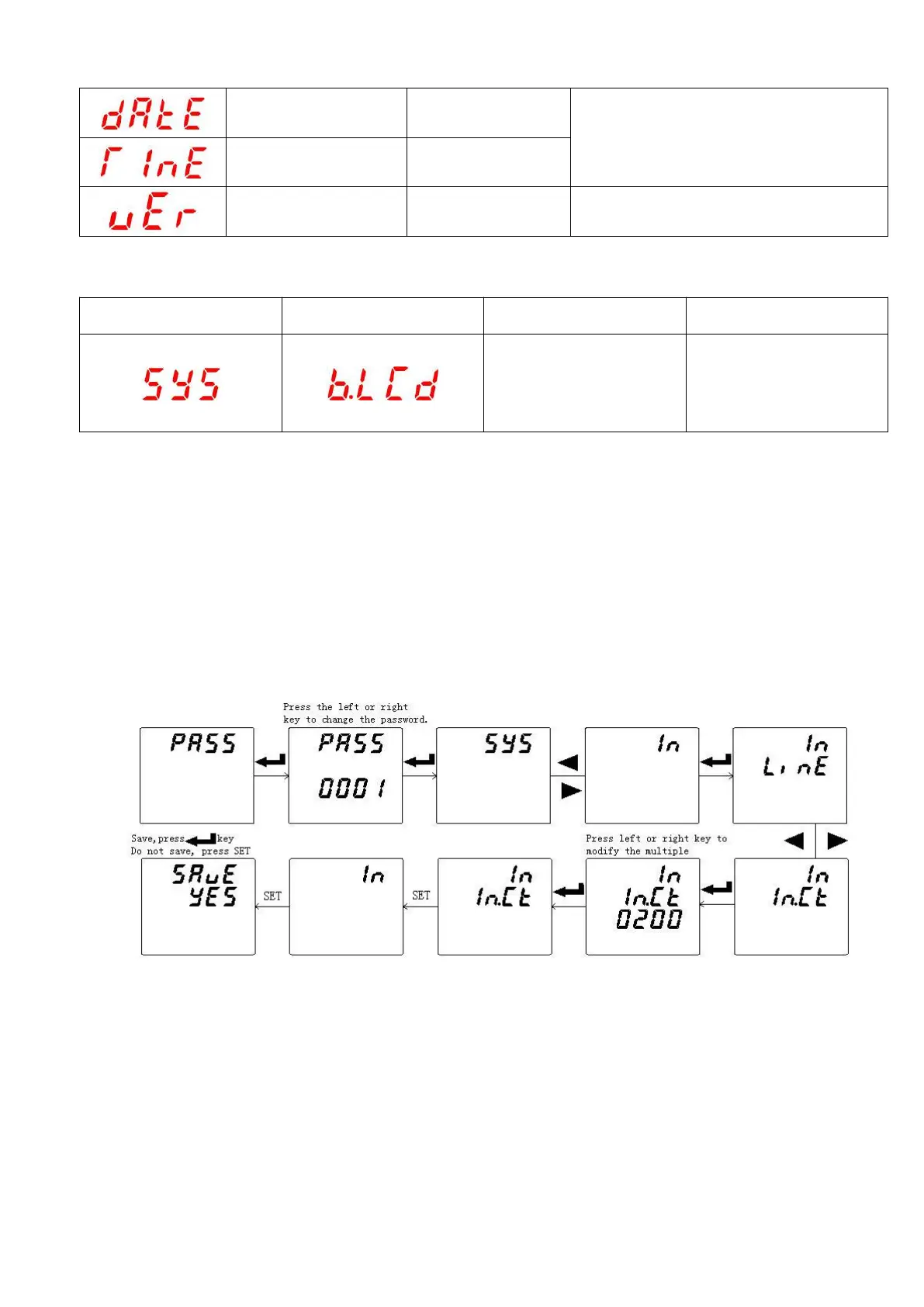

Figure 24
