3
3.Installation wiring instructions

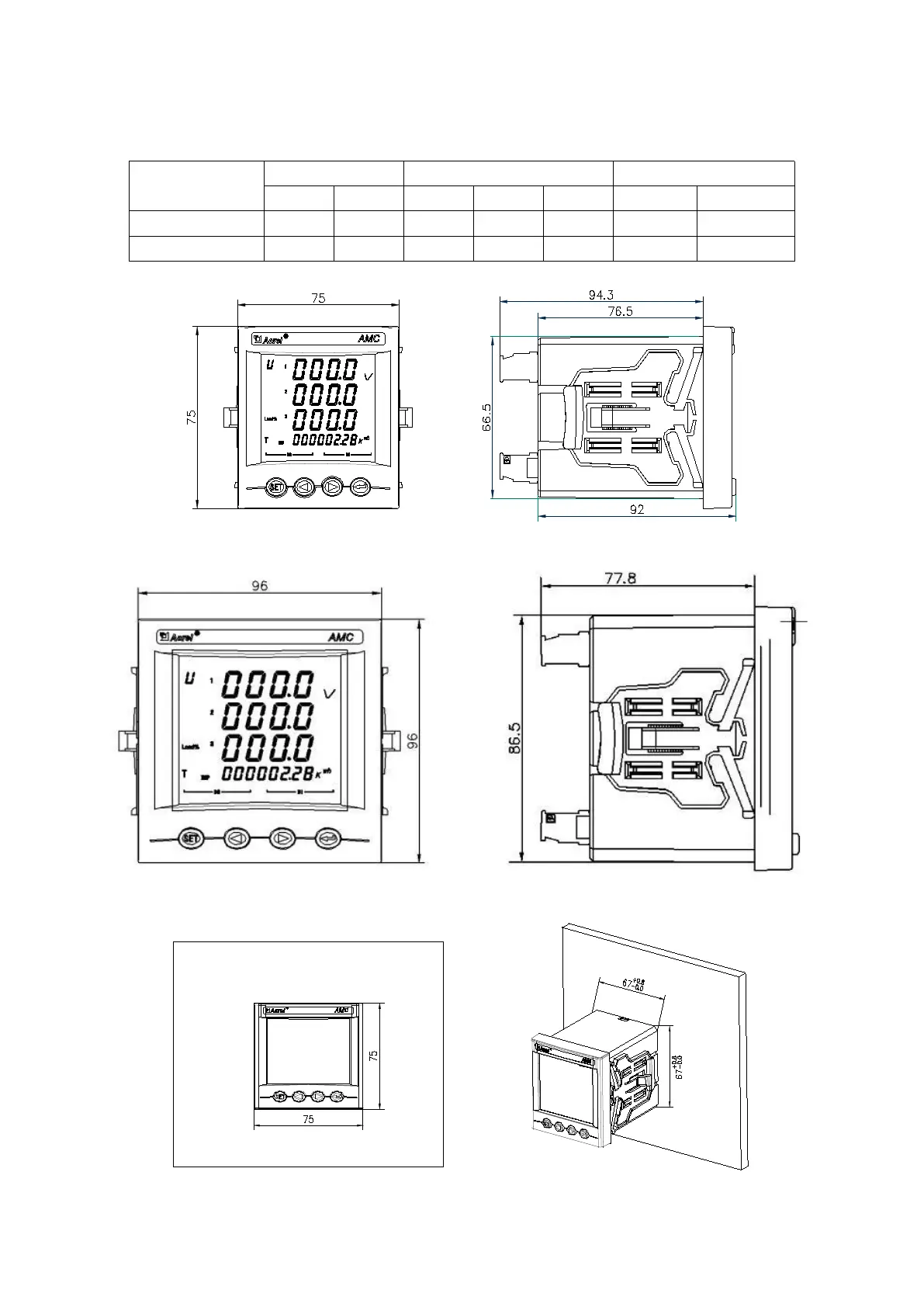

4.1 Outline and mounting cutout size
Picture 3
Outline
faceplate size
housing size
cutout size
width
height
width
height
depth
width
height
72 square
75
75
66.5
66.5
94.3
67
67
96 square
96
96
86.5
86.5
77.8
88
88
Figure 1 AMC72 appearance size
Figure 2 AMC96 appearance size
Figure 3 AMC72 installation dimensions
