4

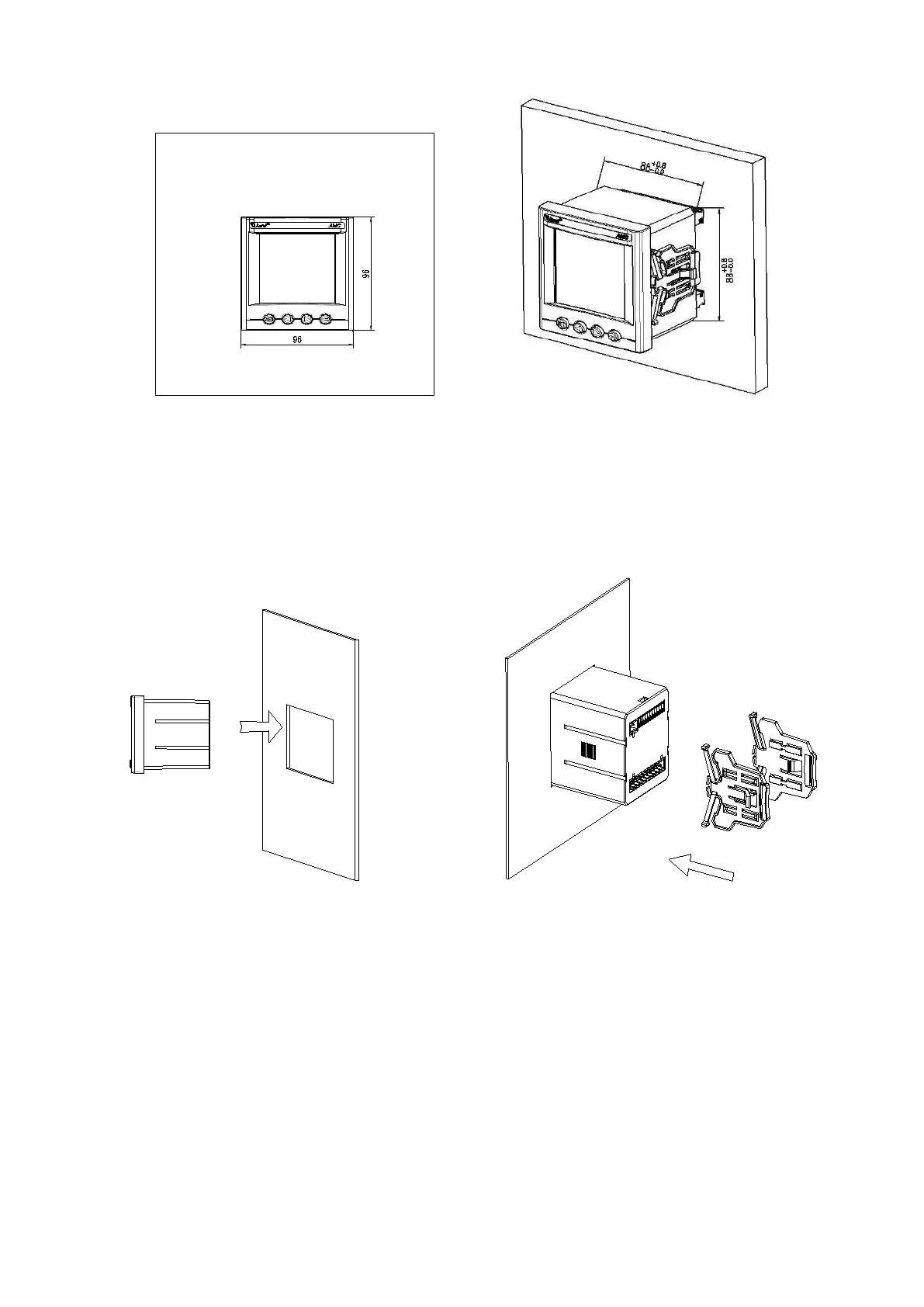

Figure 4 AMC96 installation dimensions
4.2 Installation method
1)Opening in fixed distribution cabinet
2)Take out the instrument and take out the clip
3) The instrument is mounted from the Front to the mounting hole, as shown in figure 5
4) Insert the instrument clasp to secure the instrument, as shown in figure 6
Figure 5 Figure 6
4.3 Wiring method
According to varied design requirements, power and voltage input terminals are recommended with
fuse(BS88 1A gG) to meet with the safety performance requirements of prevailing electric codes.
