Acrel AMC Series User Manual

14

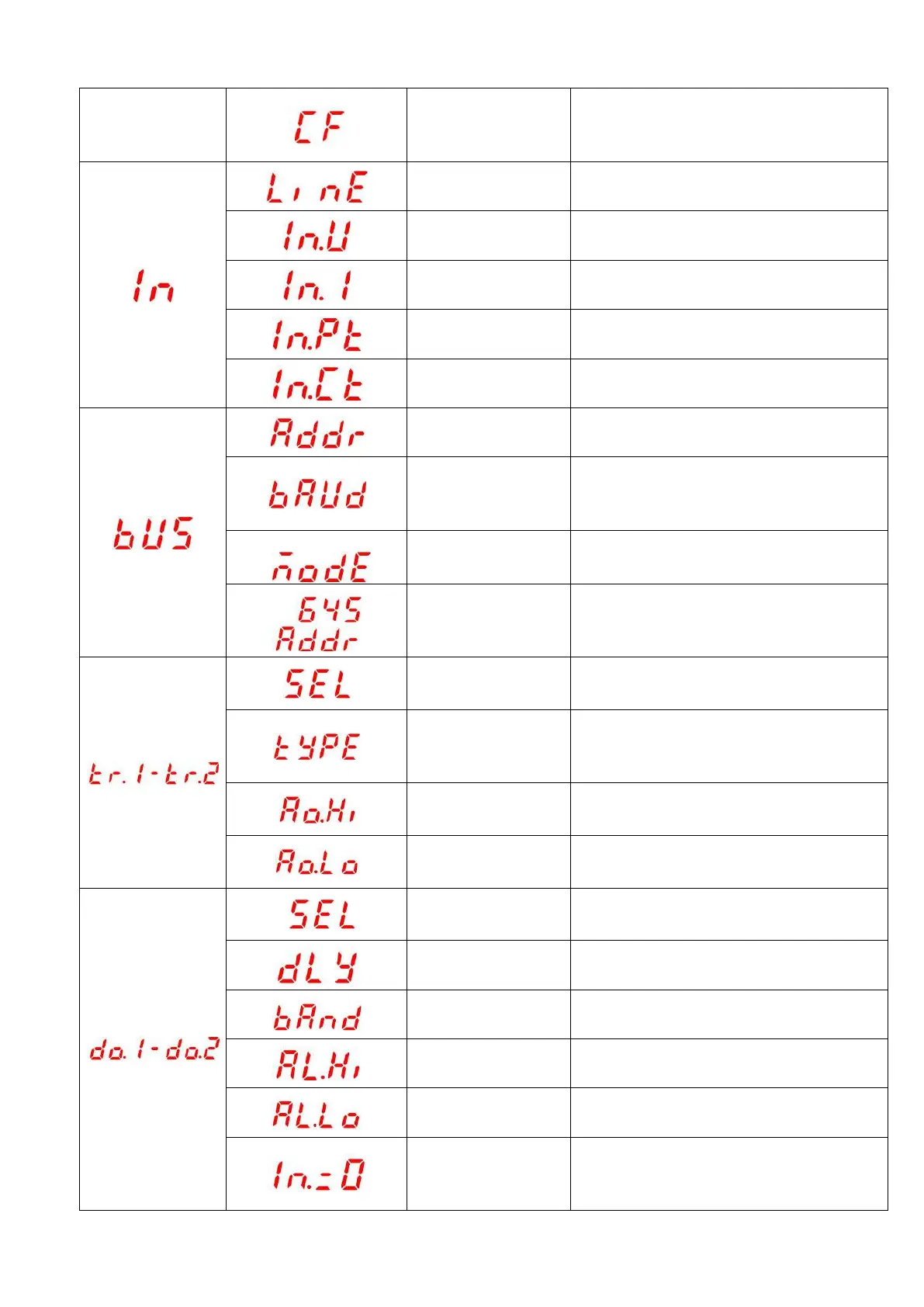

EP/EQ
Active pulse (EP), reactive pulse (EQ)
switching, default active pulse
3P3L、3P4L
Connection mode(Three-phase-three-wire
Three-phase-four-wire)
100V、400V、660V
Input voltage range
1A、5A
Input current range
0～9999
Voltage ratio
0～9999
Current ratio
1～247
Communication address
1200、2400、4800、
9600、19200、38400
Communication baud rate
None/2bit/odd/even
Communication data mode
000000000001～
999999999999
645 Protocol Communication Address
See 5.4.2 for details.
Analog output item selection
4～20mA Or 0～
20mA
Output range
-9999～9999
High change value setting
-9999～9999
Low change value setting
See 5.4.3for details.
Alarm item selection
0000～9999
Alarm delay or remote control delay
0000～9999
Hysteresis setting
-9999～9999
High alarm value setting
-9999～9999
Low alarm value setting
Whether low alarm is allowed when the
signal is 0
