16

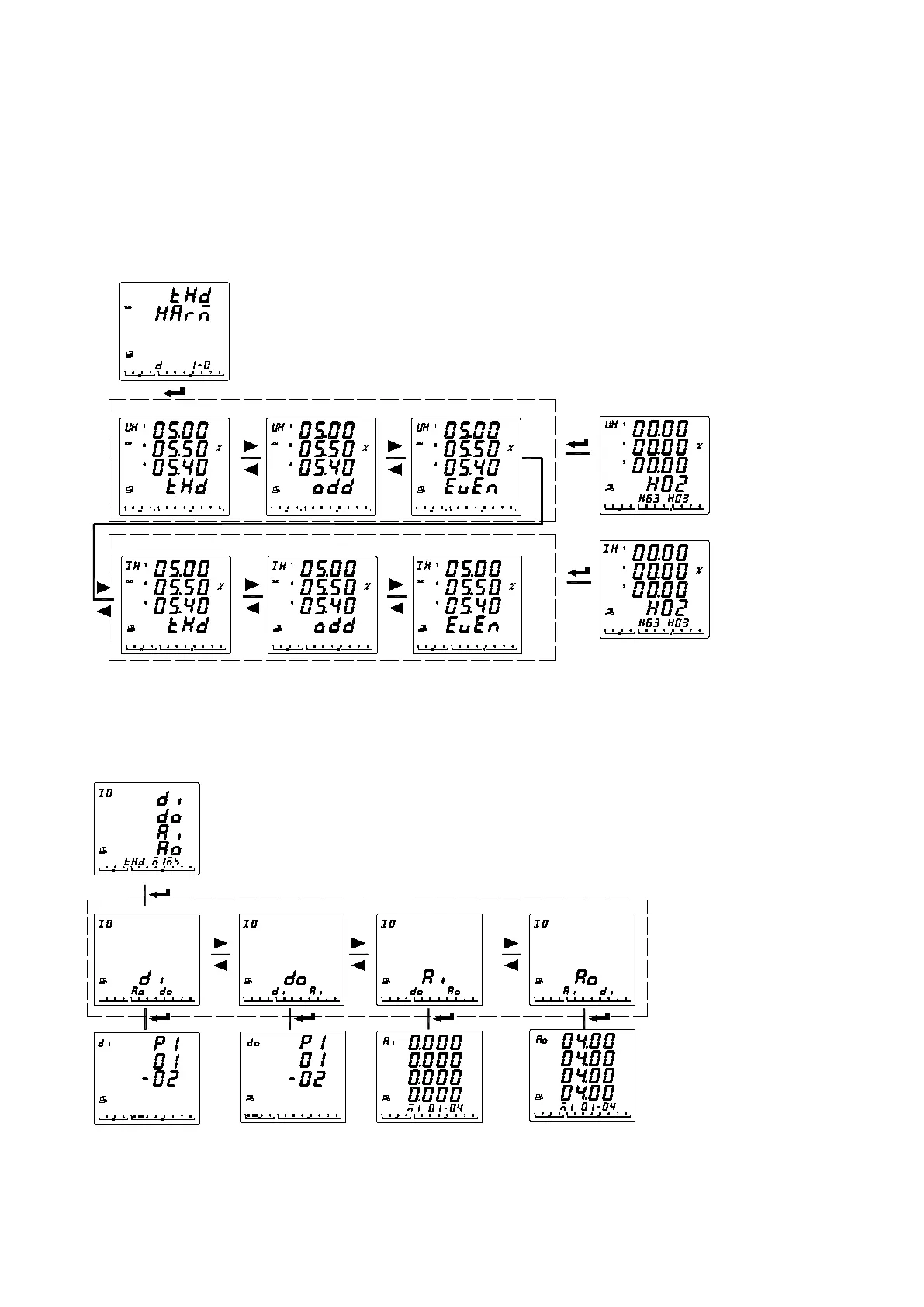

View harmonic (APM810 only): Press
◀▶
key on the main screen until the current measurement data display area shows THD, the
measurement data area shows THD, HARM, and press the enter key. Press the ◀▶ key to view the total harmonic distortion of the
voltage, the total odd harmonic distortion of the voltage, the total even harmonic distortion of the voltage even, the total harmonic
distortion of the current, the total odd harmonic distortion of the current, and the total even harmonic distortion of the current. After
you press the enter key at the total harmonic distortion of voltage (or current) interface, you can view the subharmonics.
Total harmonic distortion
of the phase voltage
The subharmonic of phase voltage
Total odd harmonic distortion
of the phase voltage
Total even harmonic distortion
of the phase voltage
Total harmonic distortion
of the current
Total odd harmonic
distortion of the current
Total even harmonic
distortion of the current
MENU
MENU
The subharmonic of current
Harmonic
View IO (Input and output): Press key on the main screen until the current measurement data display area shows IO, and the
measurement data area shows DI, DO, AI, AO, press enter. Press the
◀▶
keys to select the information to be viewed (DI: digital input,
DO: digital output, AI: analog input, AO: analog output).
IO
View DI View DO
DI status
DO status
View AI View AO
Value of Ai
Value of Ao
P1:Main part; M1:Module 1 M2:Module 2,and so on.
Indicate status or values of DI/DO/AI/AO.
Take DI for exampleDI1-DI2 status is indicated at ,others is similar.
