ACS A1212 MASTER - Page 55

Ultrasonic flaw detector А1212 MASTER
Operation Manual
55
ACOUSTIC
CONTROL
SYSTEMS
2.3.3.3 Recording the voice comment for the snapshot being saved

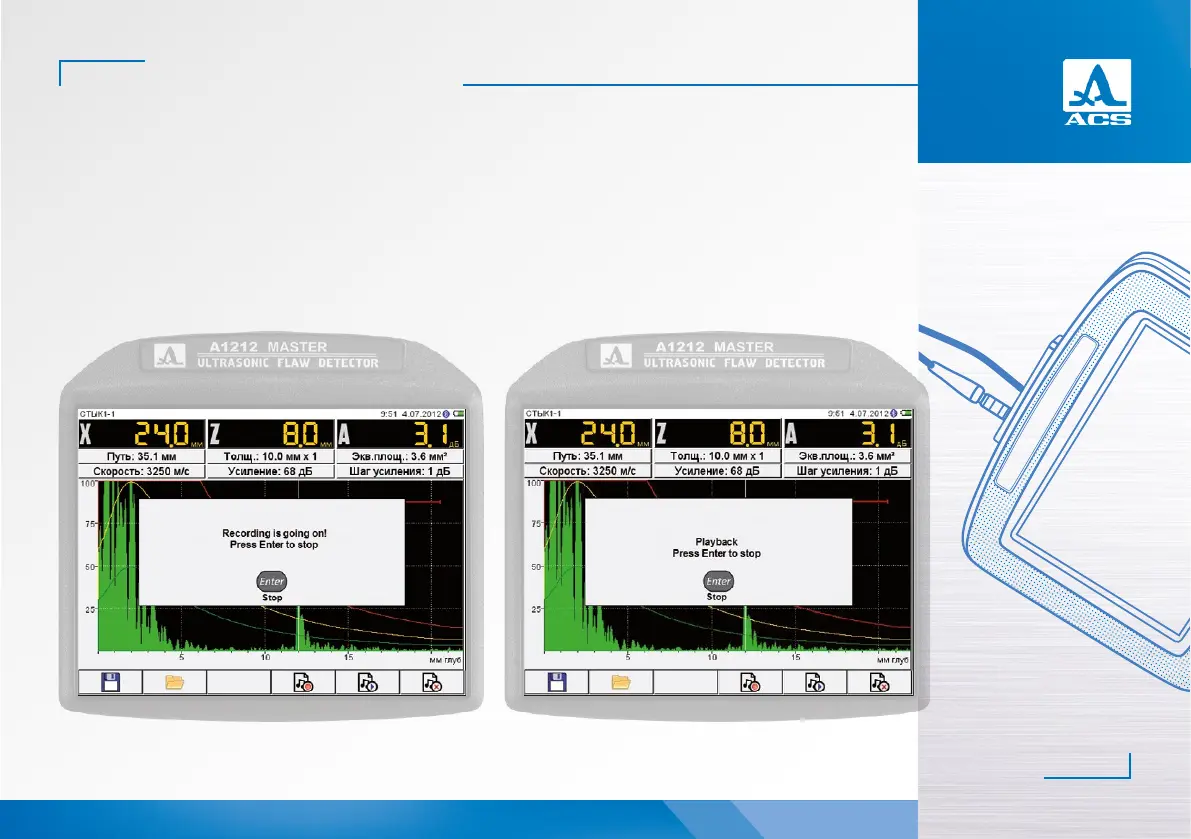

Upon pressing the F4 key the instrument will start recording the voice comment for the snapshot being saved (Figure 56).
The soware allows recording a short voice comment (up to 20 seconds).
ATTENTION: REPEATED PRESSING OF THE F4 KEY RESULTS IN RERECORDING OF THE ALREADY RECORDED COMMENT!
Figure 56 Figure 57
2.3.3.4 Playing the voice comment for the snapshot being saved
Upon pressing the key F5 the instrument will start playing the recorded voice comment for the snapshot being saved
(Figure 57).
2
