ICE CFA3240A-3300A-3360A I&O Manual 10/2023 Rev.11
Appendix B

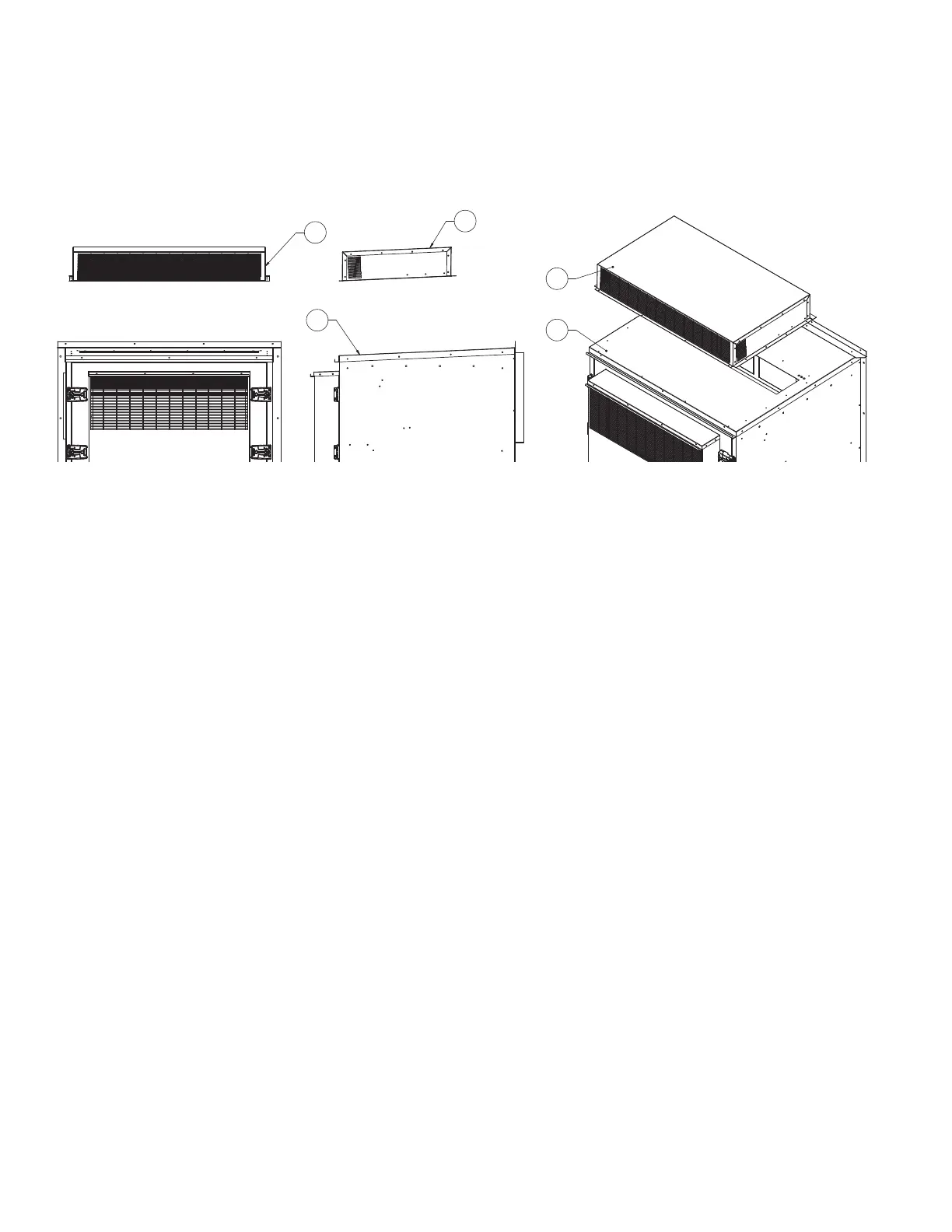

CFA3240A Reverse Flow w/Economizer
Exhaust Hood Installation
1
2
1
2
1
A. MAKE SURE FACTORY SUPPLIED GASKET IS PROPERLY ATTACHED TO THE BOTTOM FLANGES OF THE HOOD ASSY ITEM 1
B. PLACE HOOD ASSY ITEM 1 ON TOP OF UNIT WITH SLOTTED VENTS TOWARDS THE FRONT OF THE UNIT
C. ALIGN HOLES IN THE HOOD ASSY FLANGES WITH PREDRILLED HOLES IN THE TOP PANEL OF UNIT ITEM 2
D. SCREW INTO PLACE WITH SHEET METAL SCREWS PROVIDED
E. ADD SILICONE BEAD AROUND THE TWO SIDES AND REAR OF THE HOOD ASSY
To Next Page
