INSTALLATION
3. Installation
The differential pressure controller DPC200 is designed for wall mounting.
• The mounting surface must be solid enough and vibration-free.
• The environment has to full the ambient climatic conditions as given in the technical
data.
Material damage
Read the manual carefully before installation and operation
Only experienced staff may connect the device and bring it into
operation.
CAUTION
• The device is position depended.
• The DPC200 must be mounted vertically.
NOTICE

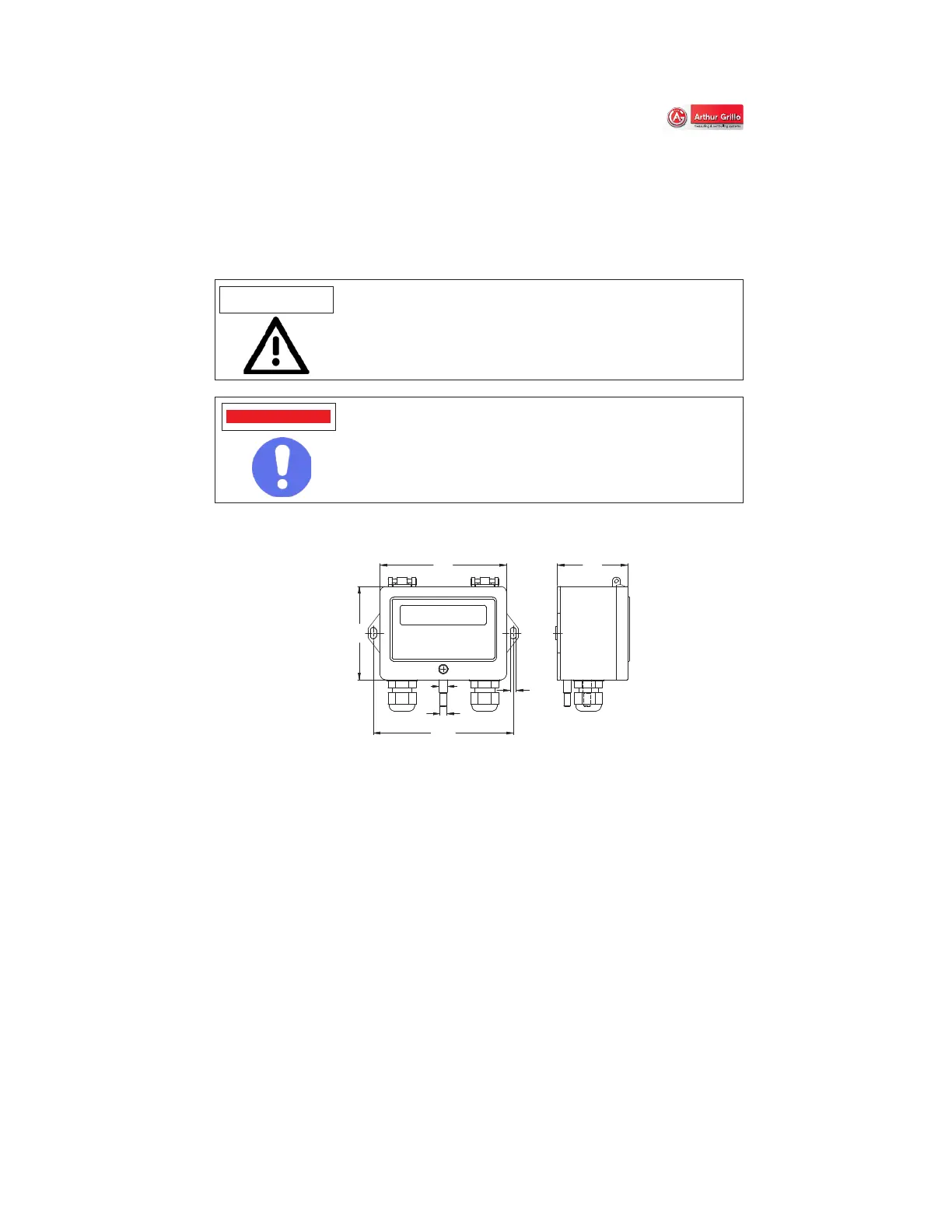

3.1 Dimensions
All dimensions in mm.
3.2 Wall mounting
1. Hold the DPC200 against the wall. Mark the mounting holes.
2. Drill mounting holes for properly sized screws.
3. Put the screws through the housing mounting holes.
4. Tighten screws.
ø
6
ø
5
M
1
6
x
1
,
5
4
,5
-
+
1
0
4
5
4
9
5
70
