ACS ICE CFA3240A - Appendix C Optional Condenser Filter Installation; Optional Condenser Filter Installation

35
ICE CFA3240A-3300A-3360A I&O Manual 10/2023 Rev.11
Appendix C

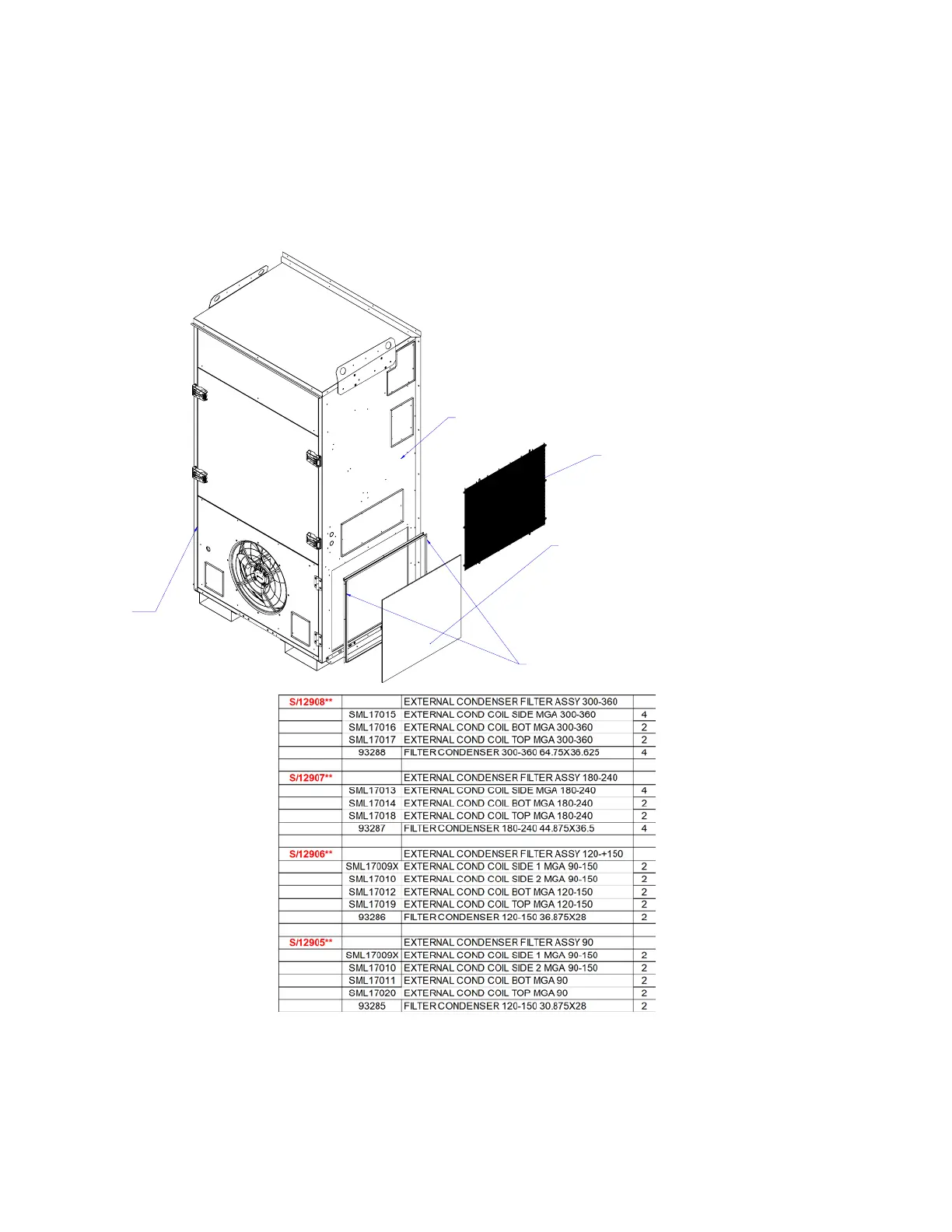

Optional Condenser Filter Installation
COIL GUARD SAVE OR DISPOSE - NOT
REQUIRED WHEN DUST FILTER IS INSTALLED
RIGHT SIDE PANEL
LEFT SIDE
PANEL
FILTER FRAME
DUST FILTER
MODEL 3090-3150 1 FILTER PER SIDE
MODELS 3180-3360 2 FILTERS PER SIDE
STEP 1-REMOVE COIL GUARD SAVE SCREWS FOR MOUNTING FILTER ASSY
STEP 2-SCREW FRAME SIDES AND BOTTOM IN COIL GUARD MOUNTING HOLES
STEP 3-SLIDE FILTER INTO FRAME
STEP 4- SCREW FRAME TOP INTO COIL GUARD MOUNTING HOLES
STEP 5-REPEAT 1-4 FOR OTHER SIDE PANEL
COIL GUARD
REVISIONS
ECO# DATE REV. DESCRIPTION REV BY
CHECKE
D BY
SCALE
DRAWN BY
SHU
APPROVED BY
TITLE
DATE DRAWING NUMBER
TOLERANCES
EXCEPT
AS NOTED
DECIMAL
±
FRACTIONAL
±
ANGULAR
±
REV.
0
Marvair
Cordele, GA
This drawing contains confidential information of Marvair, a Division of AIRXCEL, Inc. This
information is not to be disclosed or utilized without the expressed written permission of
Marvair, a Division of AIRXCEL, Inc.
Division of AIRXCEL, Inc.
3090-3360 CONDENSER
FILTER ASSY
.03"
MAT'L: NA
2018-12-17
1
ECO # REV DATE
DESCRIPTION REV BY
CH BY
SHU FIRST RELEASE 5/13/21
Last
REV
0
TM
NA
COIL GUARD SAVE OR DISPOSE - NOT
REQUIRED WHEN DUST FILTER IS INSTALLED
RIGHT SIDE PANEL
LEFT SIDE
PANEL
FILTER FRAME
DUST FILTER
MODEL 3090-3150 1 FILTER PER SIDE
MODELS 3180-3360 2 FILTERS PER SIDE
STEP 1-REMOVE COIL GUARD SAVE SCREWS FOR MOUNTING FILTER ASSY
STEP 2-SCREW FRAME SIDES AND BOTTOM IN COIL GUARD MOUNTING HOLES
STEP 3-SLIDE FILTER INTO FRAME
STEP 4- SCREW FRAME TOP INTO COIL GUARD MOUNTING HOLES
STEP 5-REPEAT 1-4 FOR OTHER SIDE PANEL
COIL GUARD
REVISIONS
ECO# DATE REV. DESCRIPTION REV BY
CHECKE
D BY
SCALE
DRAWN BY
SHU
APPROVED BY
TITLE
DATE DRAWING NUMBER
TOLERANCES
EXCEPT
AS NOTED
DECIMAL
±
FRACTIONAL
±
ANGULAR
±
REV.
0
Marvair
Cordele, GA
This drawing contains confidential information of Marvair, a Division of AIRXCEL, Inc. This
information is not to be disclosed or utilized without the expressed written permission of
Marvair, a Division of AIRXCEL, Inc.
Division of AIRXCEL, Inc.
3090-3360 CONDENSER
FILTER ASSY
.03"
MAT'L: NA
2018-12-17
1
ECO # REV DATE
DESCRIPTION REV BY CH BY
SHU FIRST RELEASE 5/13/21
Last
REV
0
TM NA
