710-00002.5

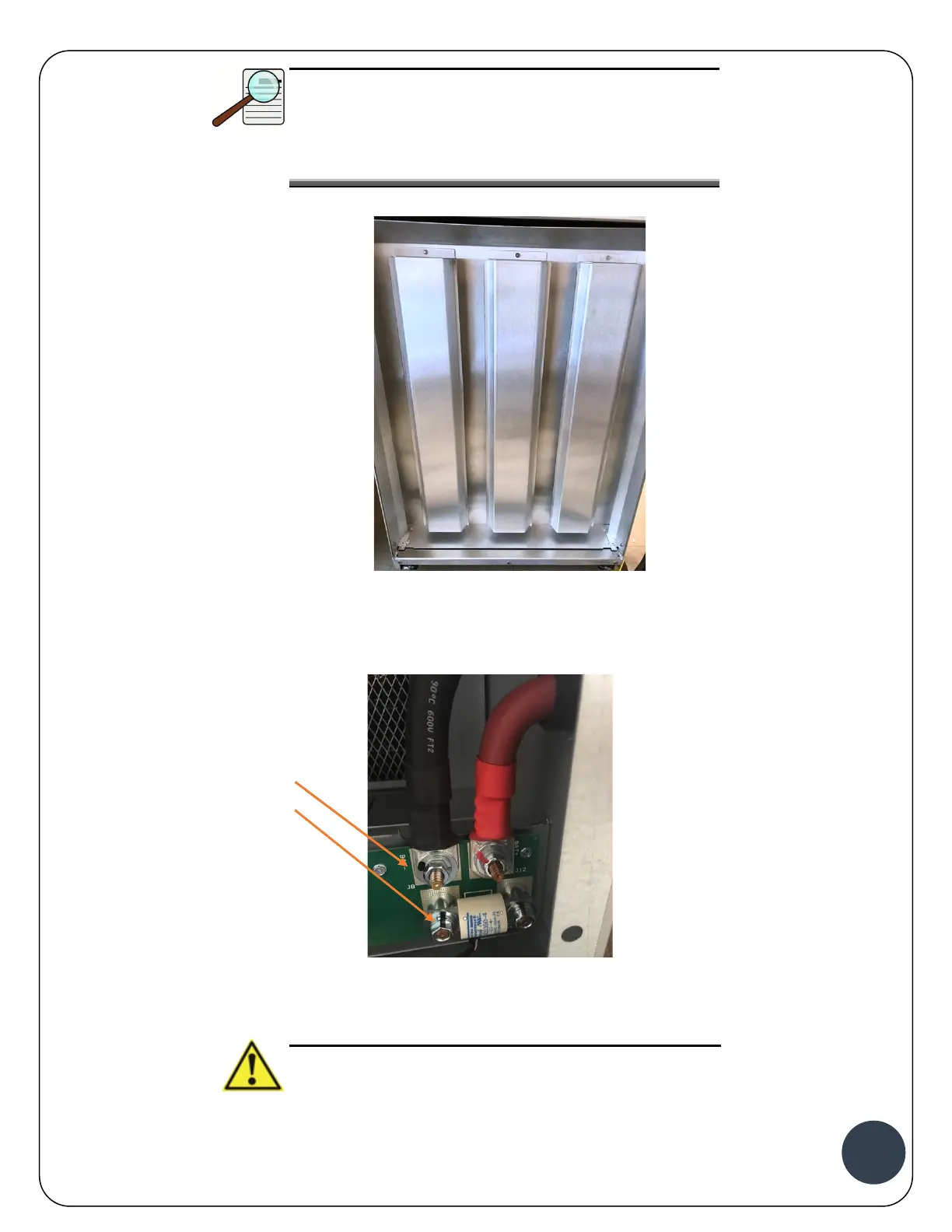

NOTE:
For the Outdoor/GSE Charger remove the labyrinth
that is behind the front and back cover to access the
charger backplanes. The screws are located on the
side.
Outdoor/GSE Charger back Labyrinth
3. Inspect the DC fuse and battery cables, make sure the torque line is straight. If the torque line
is not straight, TORQUE THE NUTS TO 55 INCH-POUND. DO NOT OVERTIGHTEN AS THIS MAY
DAMAGE THE PCB.
4. Push out the knockout on the left side of the charger and pass the AC input power wires
through, using the appropriate conduit or strain relief fittings per local and national codes.
WARNING:
For the Outdoor/GSE Chargers, the AC input power
To Next Page
