3.4 Charger Electrical Installation
WARNING:
DANGEROUS VOLTAGES AND CURRENTS ARE PRESENT IN THE AC
MAINS WHEN ENERGIZED. ONLY TRAINED PERSONNEL SHOULD
PERFORM THESE PROCEDURES, USING PROPER EQUIPMENT AND
PROCEDURES.
VERIFY THAT INPUT AND OUTPUT WIRING ADHERES TO ALL LOCAL
SAFETY CODES AND STANDARDS.
§ The Quantum charger requires 600/480/380/208 VAC 3Æ (3-Phase) service. Check the
nameplate rating on the charger to verify AC Voltage.
§ The Quantum charger has a variety of configurations. Check the nameplate rating on the charger
to verify the current draw requirement.

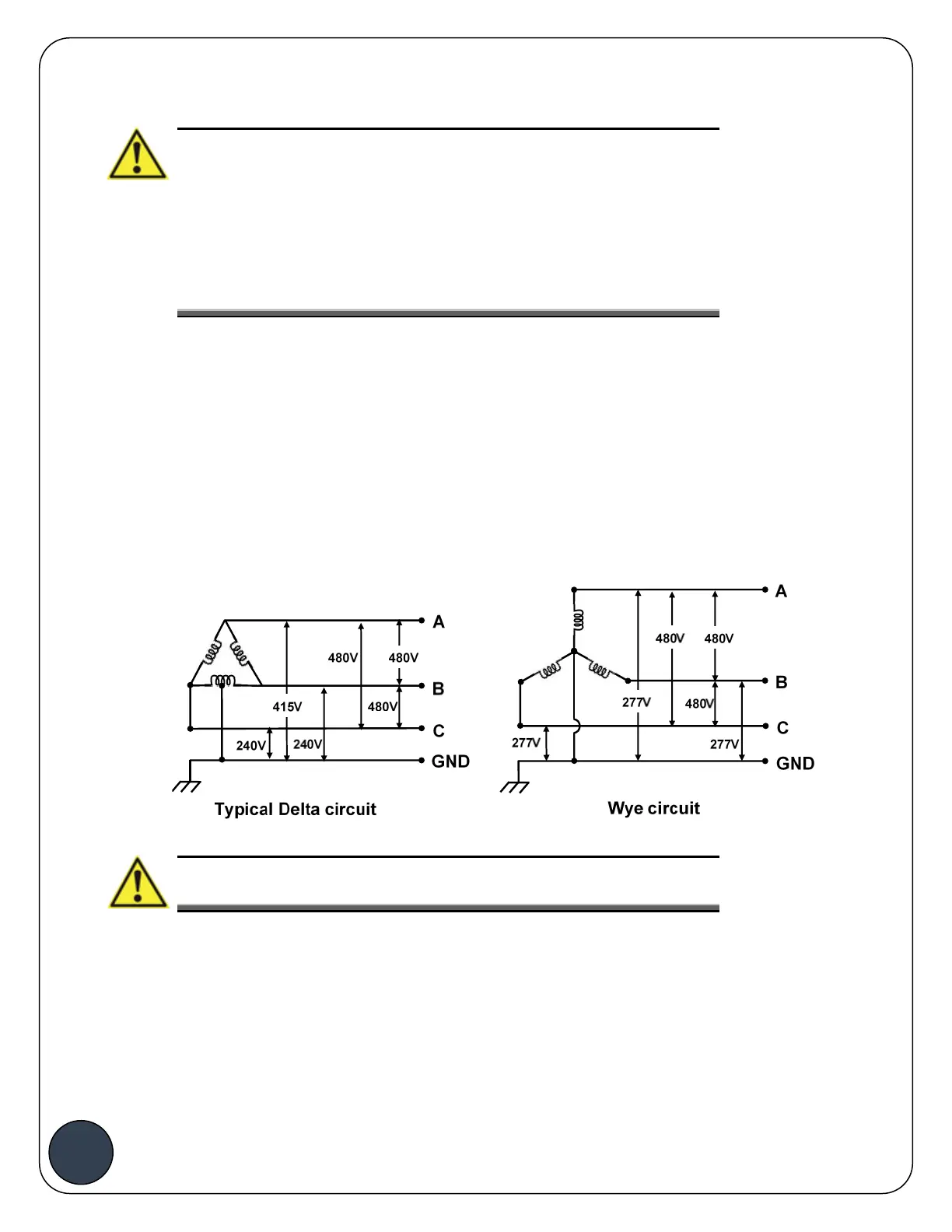

§ The Quantum charger requires four-wire Wye or Delta electrical supply with a separate ground.
Check the Technical Specification section for the AC current draw; circuit disconnect should be
sized at 125% of the current draw.
WARNING:
AC power connection should be made by a licensed electrician only.
1. Verify that the source circuit is locked and tagged out before connecting power to the charger.
2. Take off the back cover by loosening the mounting screws on the sides of the cover and lift the
cover off.
