ACM-4201 Hardware User’s Manual
8

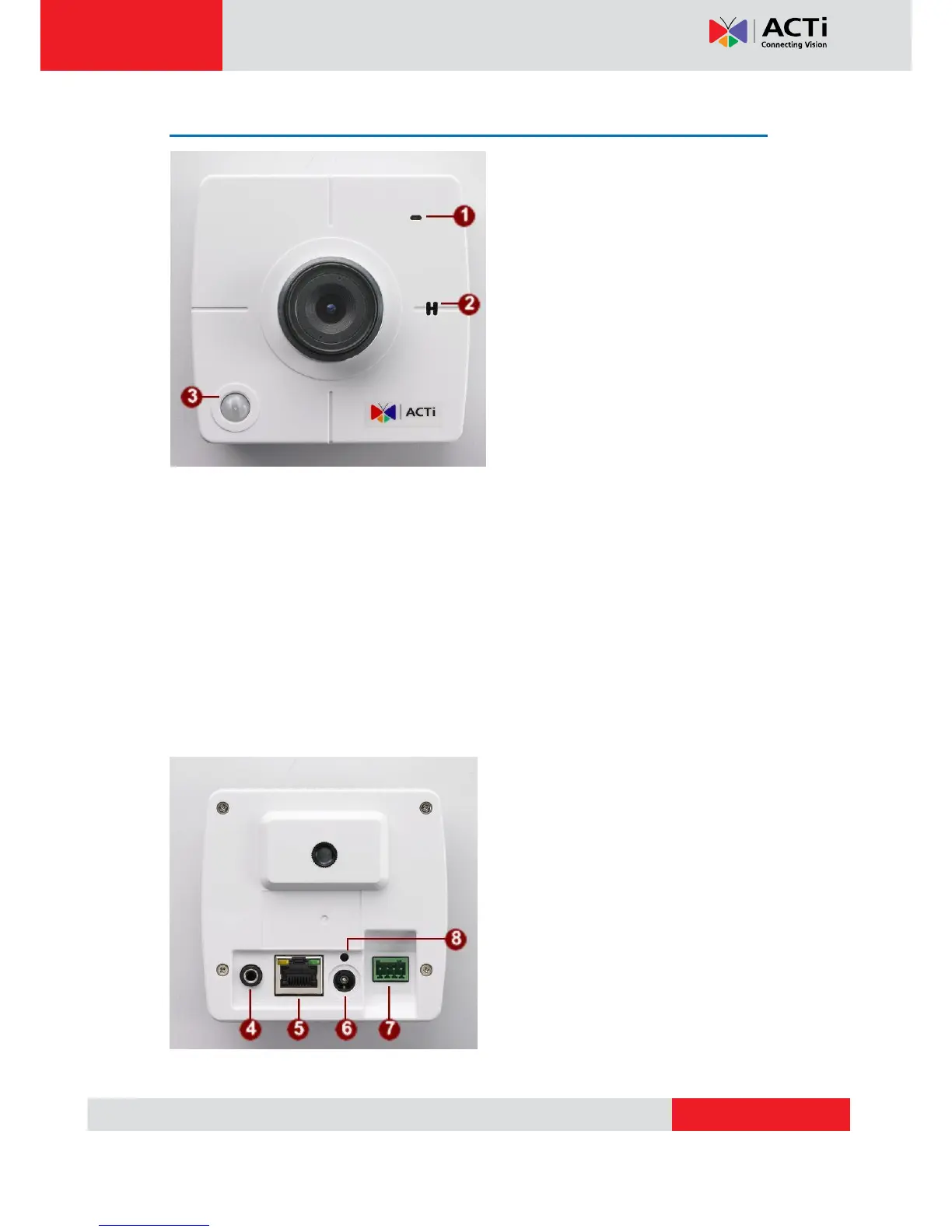

Physical description
1) Action LED Indicator
LED light will light up after the Camera has successfully completed the boot process.
2) Microphone Input
Sensitivity: -36dB ± 3dB (0dB=1V/Pa at 1KHz)
S/N Ratio: More than 58dB
Directivity: Omni directional
3) Motion Sensor (PIR) *
Motion Sensor detects movement by looking at changes in the Infrared (IR) spectrum.
* Available only for device versions with enhancements
