Before Installation
The camera comes with terminal blocks used when an external power adaptor and a digital
input/output device are needed to be connected to the camera. The following procedures
describe how to connect optional devices to the camera.
Prepare the Power Adaptor (Optional)
In case of using a non-PoE switch or your PoE switch has limited power supply, you can
purchase a power adaptor and directly connect the camera to a power outlet. The power
adaptor must be connected to the supplied terminal block before use.
To do this, follow the procedures below:

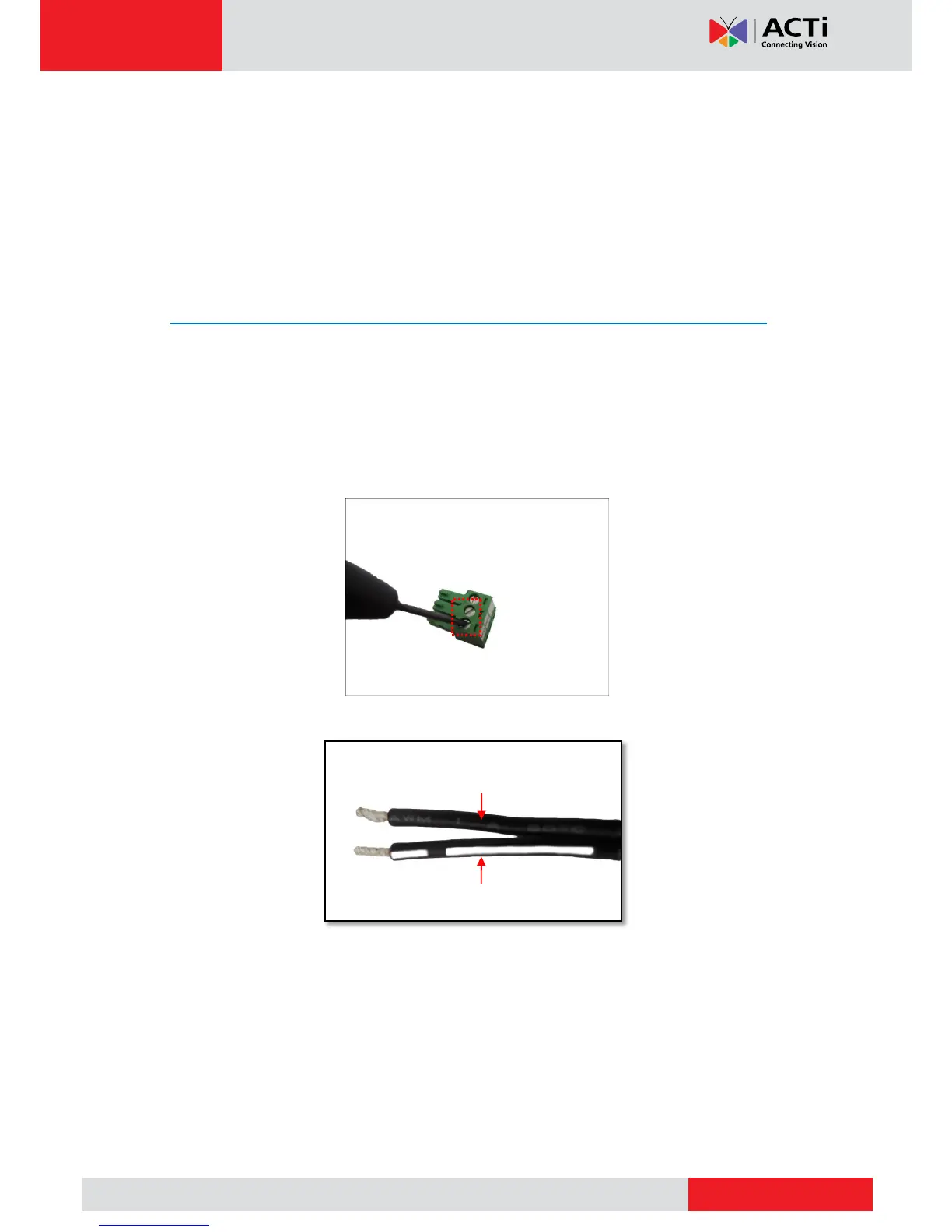

1. Loosen the screws of the 12V and GND pins of the power terminal block.
2. Take note that a standard power adaptor cable has two (2) different wires:
To Next Page
