ACTi B81 - Step 9: Adjust the Viewing Angle

www.acti.com
Installation Guide
18
Step 9: Adjust the Viewing Angle
Based on the live view, adjust the viewing angle and orientation of the camera.

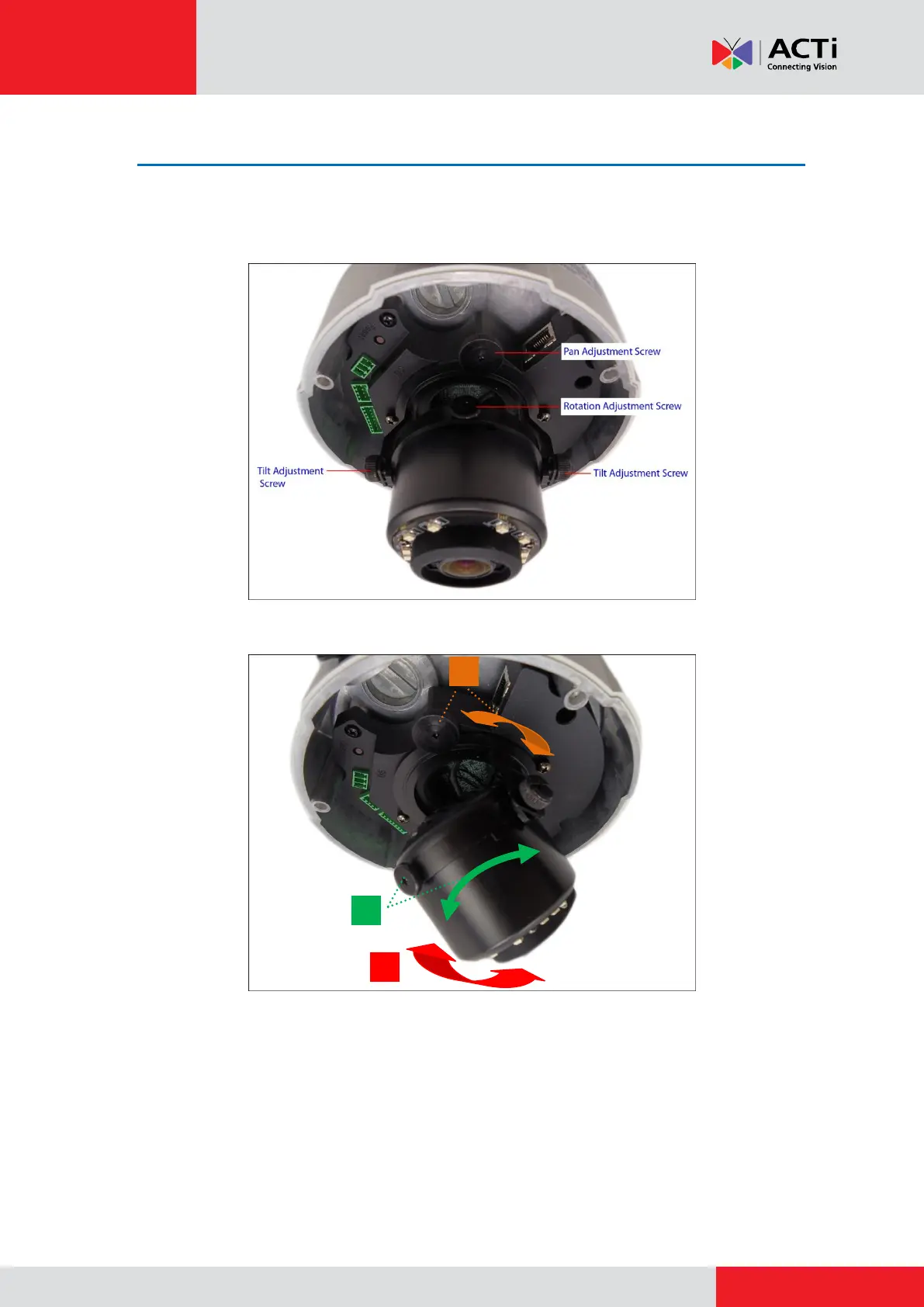

Camera Parts Overview
Adjustment Procedures
1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix
the tilt position.
2. Loosen the rotation adjustment screw, rotate the viewing orientation, and then tighten
back the screw to fix the orientation.
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the
screw to fix the pan position.
1
2
3
