Installation Guide
9

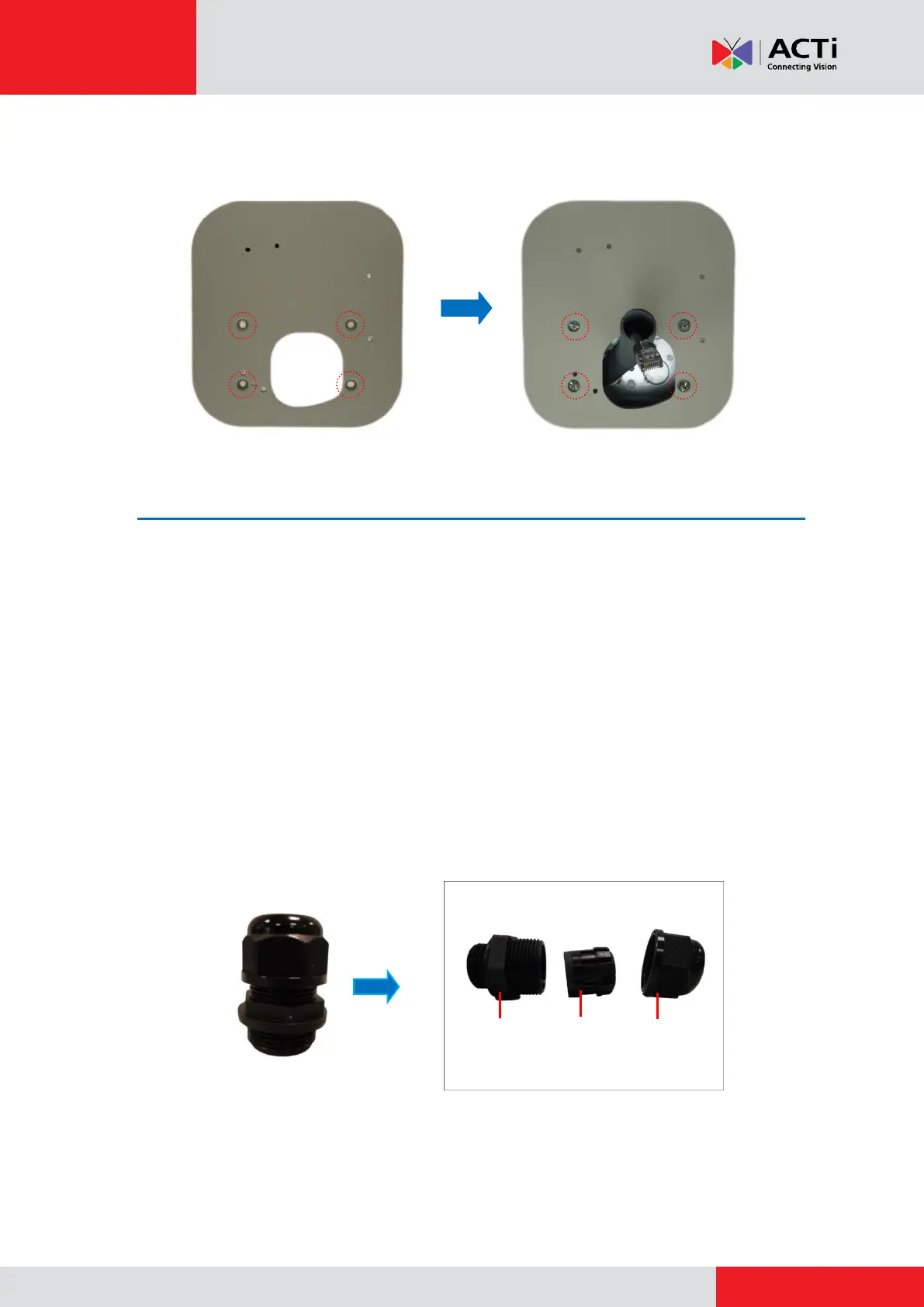

2. Install the gang box converter onto the gang box using the screws included in the gang box
package. Note the screw holes to use to secure the converter to the gang box.
Step 5: Connect the Cable(s)
Follow the procedures to connect the cable(s) based on your selected waterproof solution:
 Waterproof Solution with Naked Cable, see Waterproof Solution with Naked Cable
below.
 Waterproof Solution with Conduit, see Waterproof Solution with Conduit on page
12
Waterproof Solution with Naked Cable
This section describes the procedures in using the bundled cable gland and an exterior-grade
Ethernet cable.
1. Disassemble the cable gland as shown below:
Body
(with Washer)
Sealing Insert
with Claw
Clamping
Nut
