How to Use the Junction Box
When the camera is mounted with the cable connections exposed, use the PMAX-0702
Junction Box (not included in the package) to house the cable connections.
1. Place all the cables and the power adapter (if using one) inside the junction box.

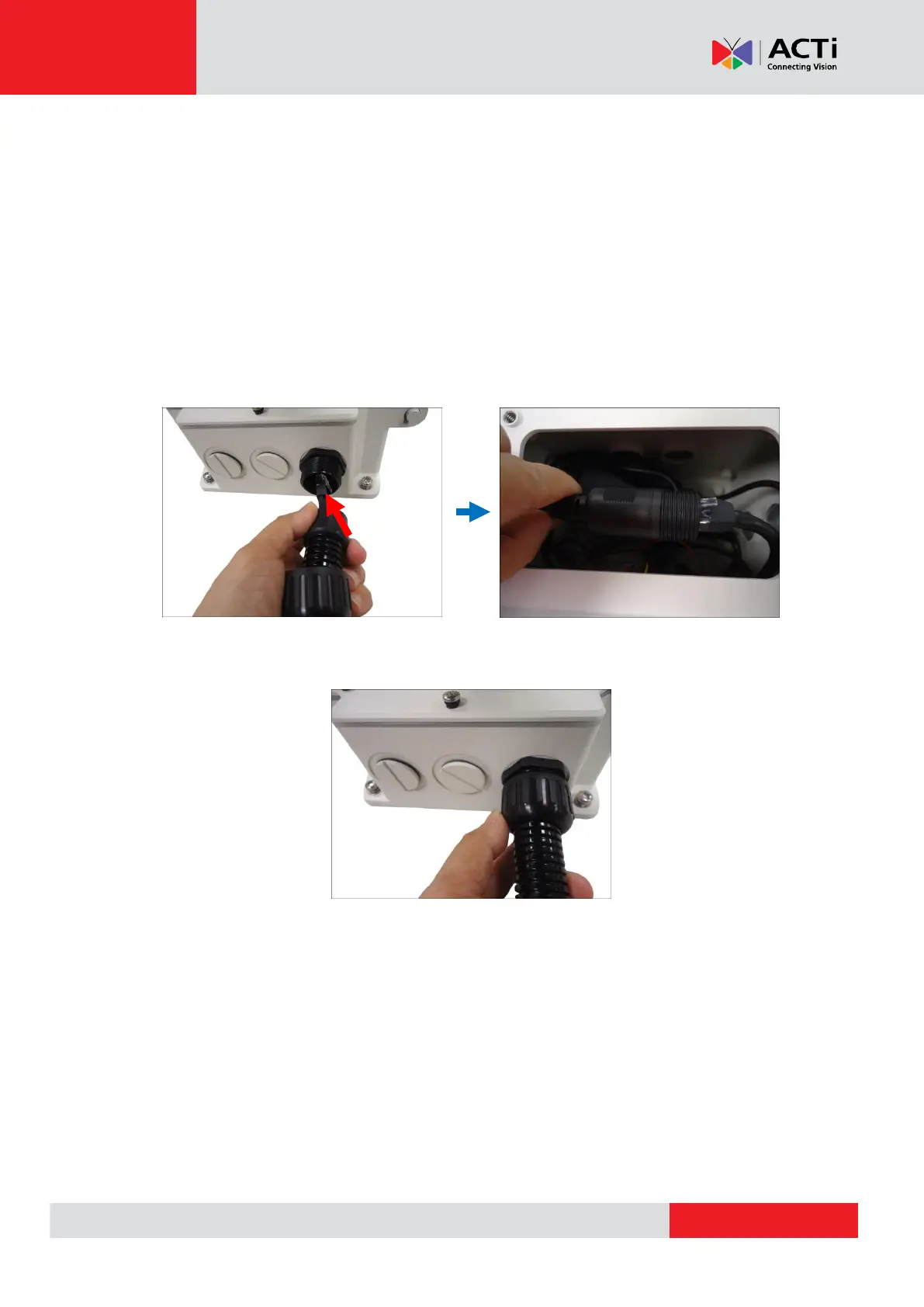

2. From the network/power source side, insert the cables, such as the Ethernet cable, through
a 1/2" flexible conduit (the flex conduit is not included in the package) and through one of the
holes of the junction box. Then connect the necessary cables. (Refer to the Installation
Guide in using PMAX-0702 for detailed instructions).
3. Secure the flex conduit fitting onto the junction box hole.
NOTE: The PMAX-0702 Junction Box is not a bundled accessory. Contact your sales agents to
purchase.
