How to Connect Audio Input / Output Devices
(Optional)

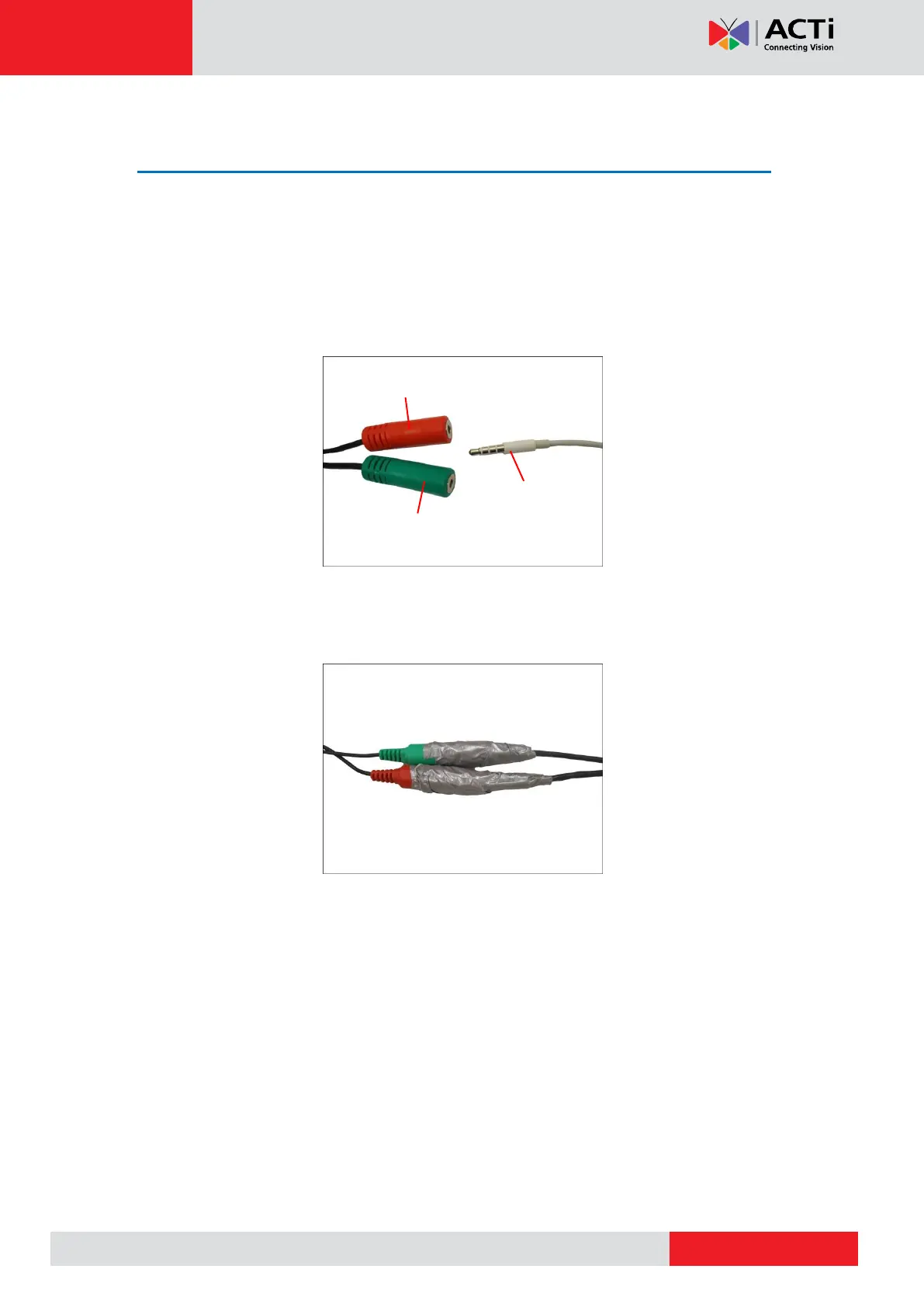

The camera comes with audio input / output jacks to connect a microphone or speaker to the
camera. The audio jacks are covered with a rubber protection.
If using an audio input device, such as a microphone with a built-in amplifier, connect the
device to the Audio Input jack (RED) of the camera. If using an audio output device, such as a
speaker, connect the device to the Audio Output jack (GREEN) jack of the camera.
If the camera is installed outdoors, be sure to wrap the audio connectors with Waterproof tape
(can be purchased in hardware stores).
DISCLAIMER: ACTi will not be responsible for damaged cameras due to water leakage
caused by improper waterproofing of cables.
NOTE 1: Make sure that the connected audio input device has a built-in amplifier. Connecting
an ordinary microphone will dwarf sounds and will result in inaudible recording.
NOTE 2: If the audio connectors will not be used, leave the rubber caps on to avoid water and
dust from entering the connectors.
