ACTi E31A - How to Attach the RJ-45 Connector

www.acti.com
Hardware Manual
29

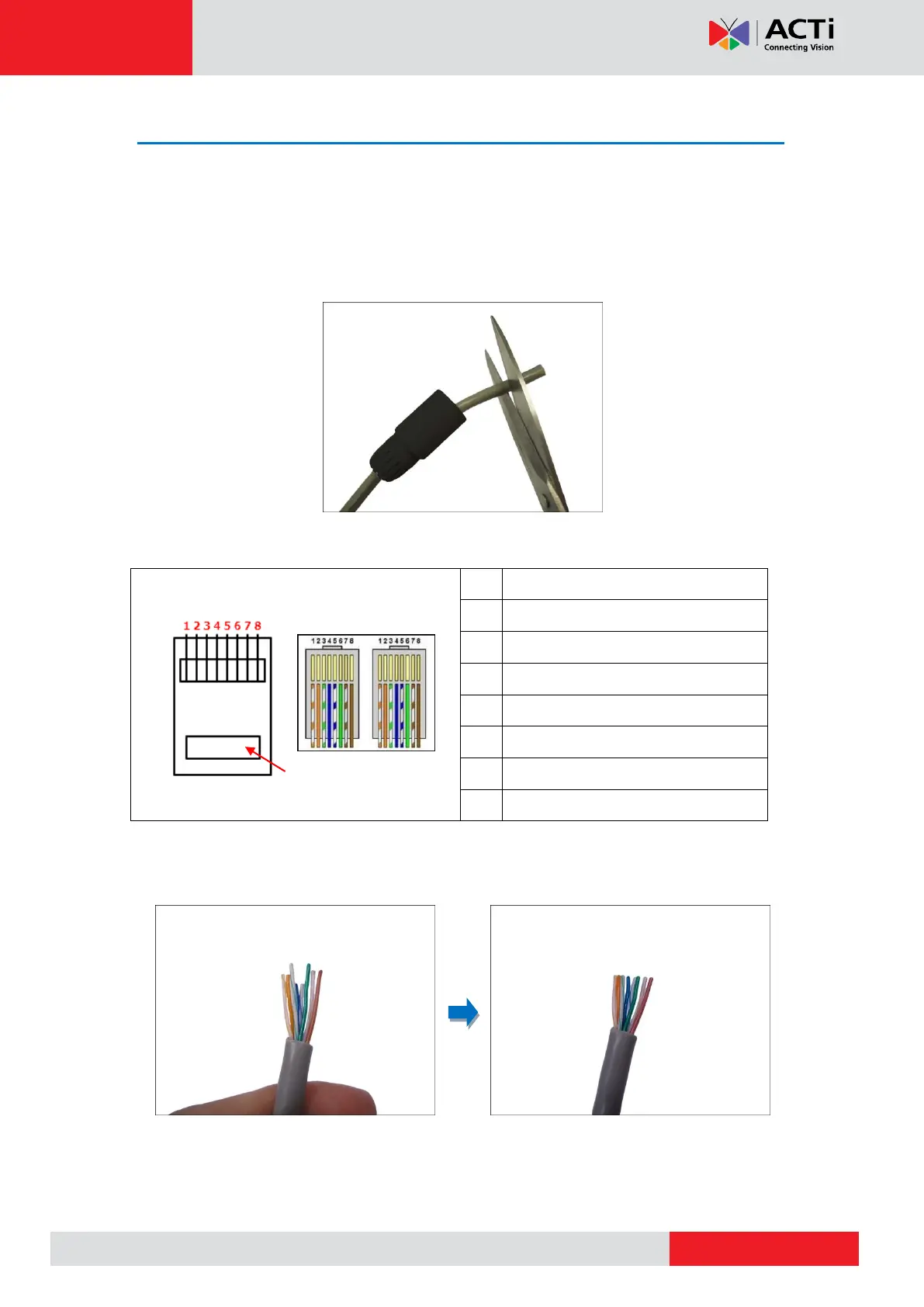

How to Attach the RJ-45 Connector
1. Prepare the following tools:
a. RJ-45 connector
b. Crimping tool
c. Scissors
2. Cut about one (1) inch into the plastic sheath from the end of the cable.
3. Unwind the wires and arrange them according to the color sequence below.
This side up
1
Stripe Orange
2
Orange
3
Stripe Green
4
Blue
5
Stripe Blue
6
Green
7
Stripe Brown
8
Brown
4. Straighten out the wires and use the scissors to make a straight cut ½ inch from the cut
end.
