ACTi E37 - Network Cable Connection; Accessing Live View

www.acti.com
Hardware Manual
15
Step 5: Connect the Cable
Connect the other end of the network cable to a switch or injector. Then, connect the switch or

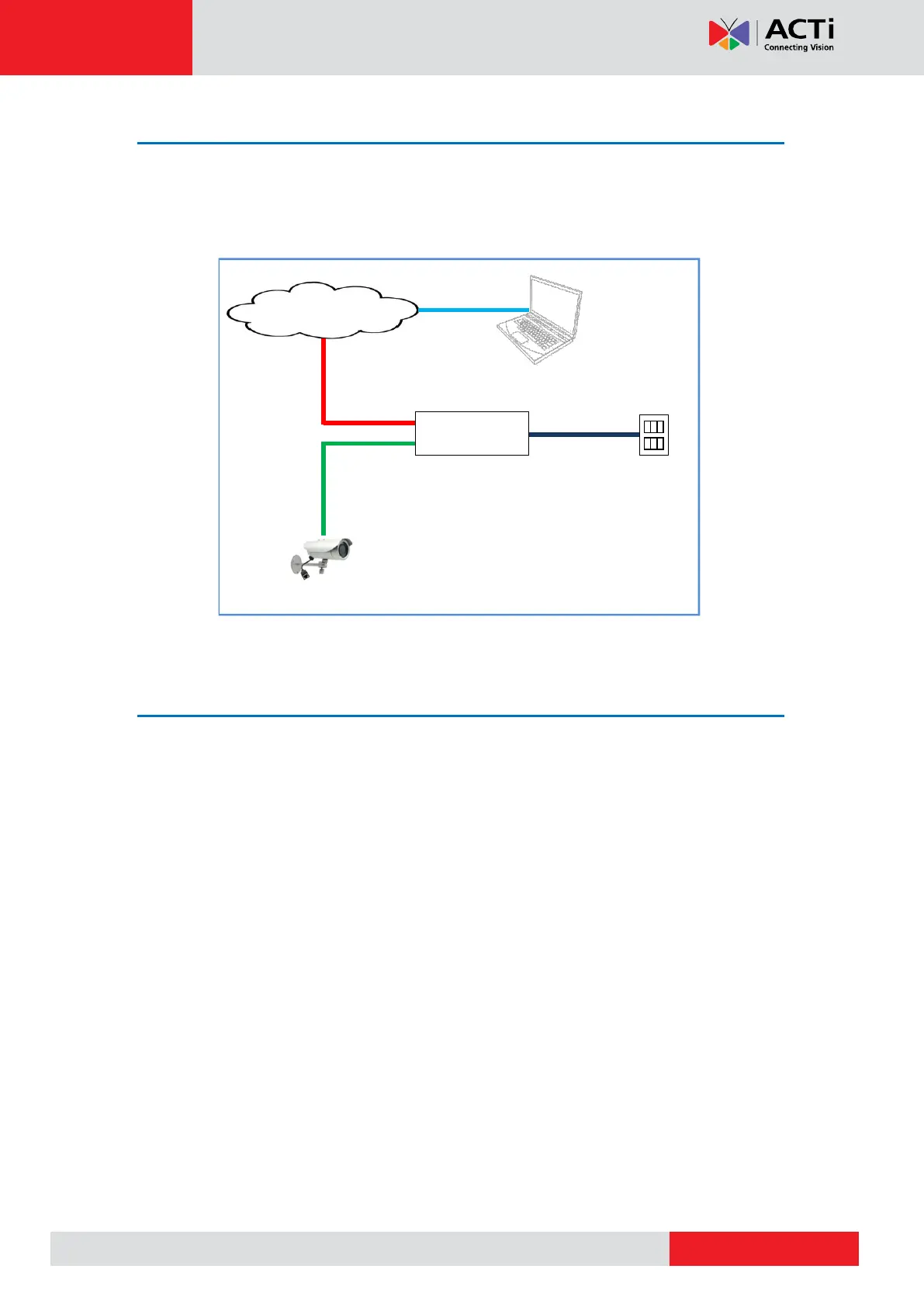

injector to a network, PC, and a power source. See Power-over-Ethernet (PoE) connection
example below.
Network
AC Power
Source
PoE Injector
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
Step 6: Access the Camera Live View
See Accessing the Camera on page 31 for more information on how to access the Live View
of the camera.
