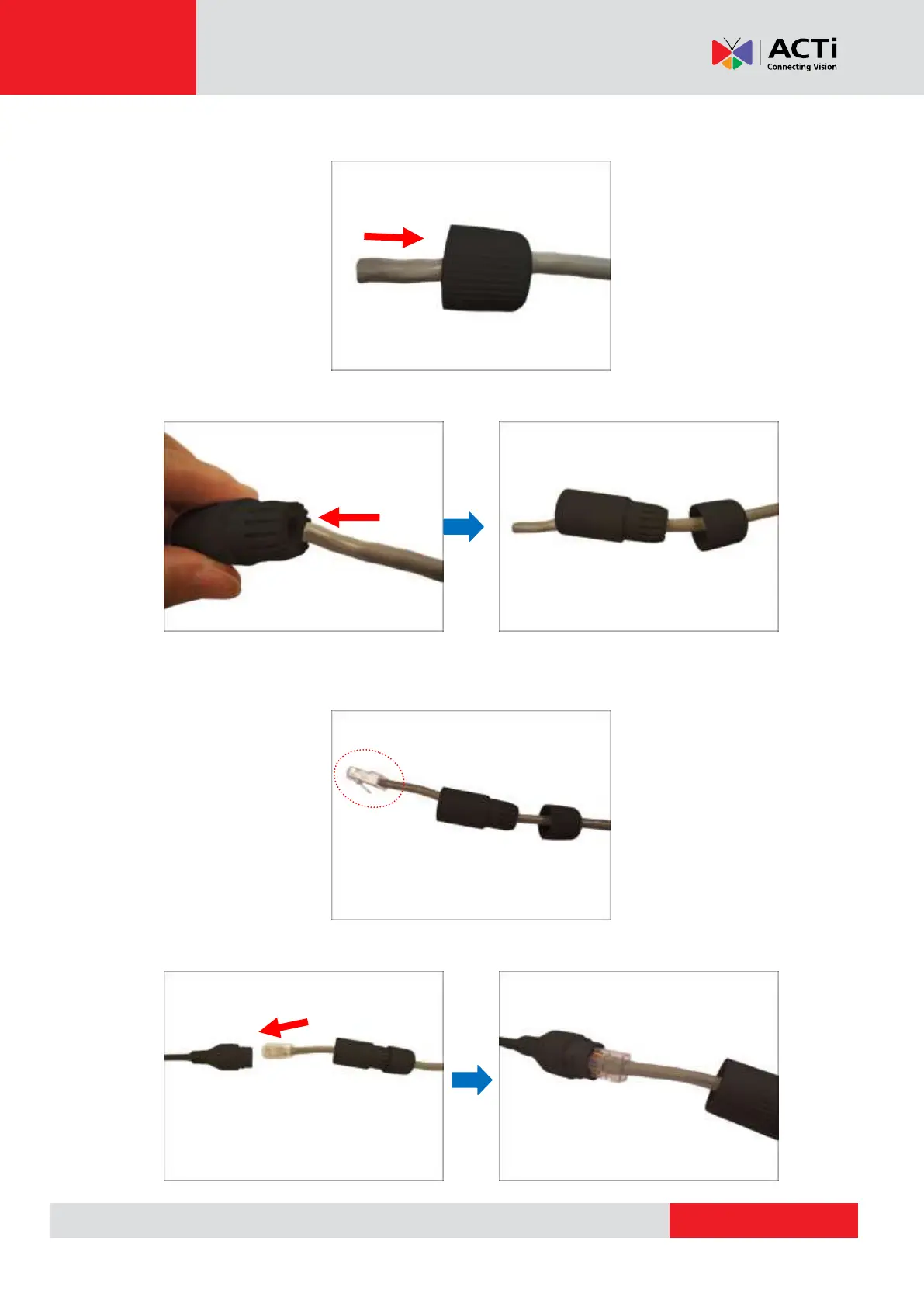

3. Insert the clamping nut into the Ethernet cable (without connector).
4. Insert the cable through the gland body.
5. Attach the RJ-45 connector to the cable. For pin mapping and detailed instructions, see How
to Attach the RJ-45 Connector on page 24 for detailed information.
6. Connect the RJ-45 connector to the camera connector.
