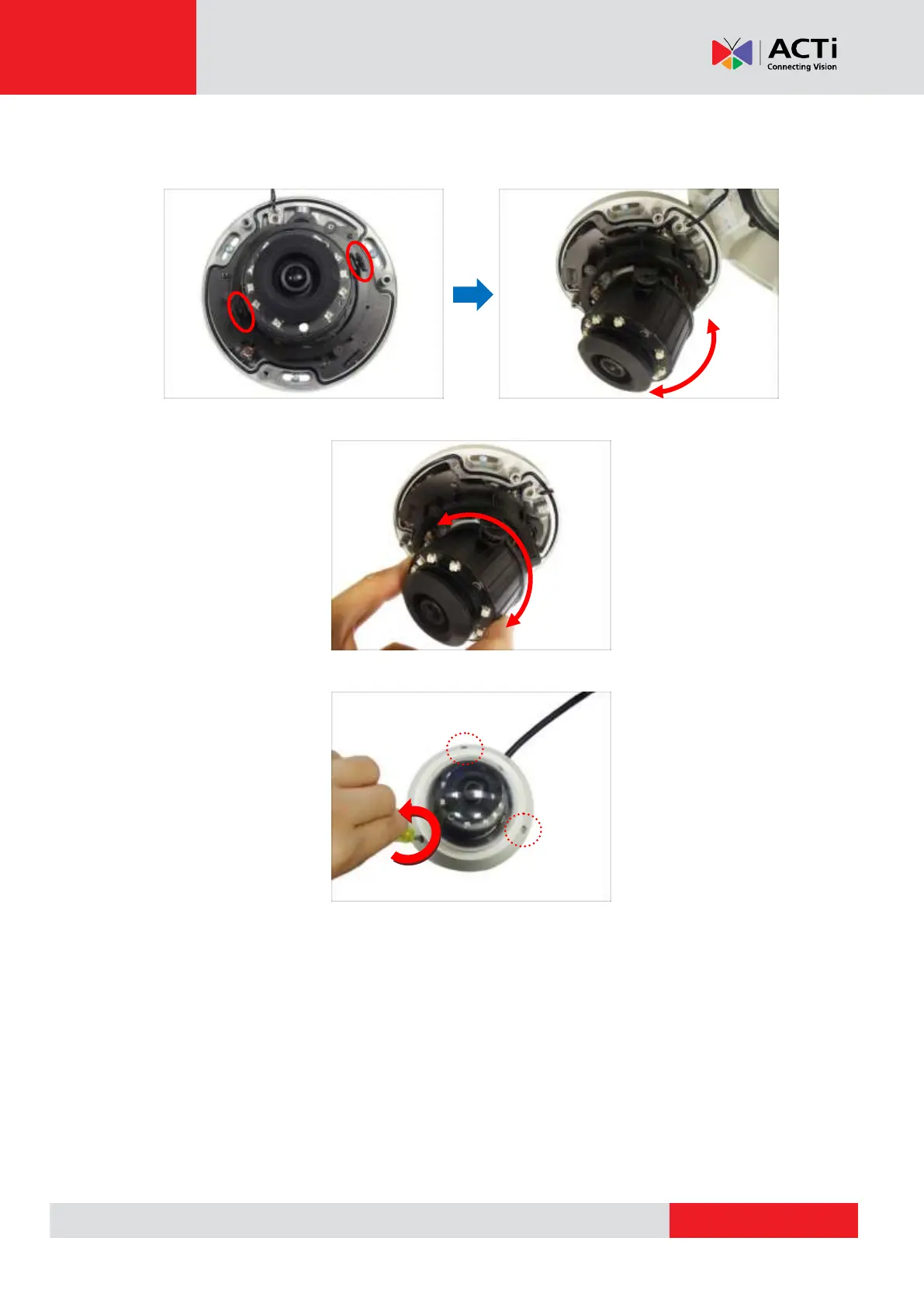

3. To tilt the lens, loosen the two (2) tilt adjustment screws. Then, adjust the tilt and tighten back
the screws to fix the tilt position.
4. To rotate the video orientation, turn the lens module left or right.
5. Close the dome cover.
