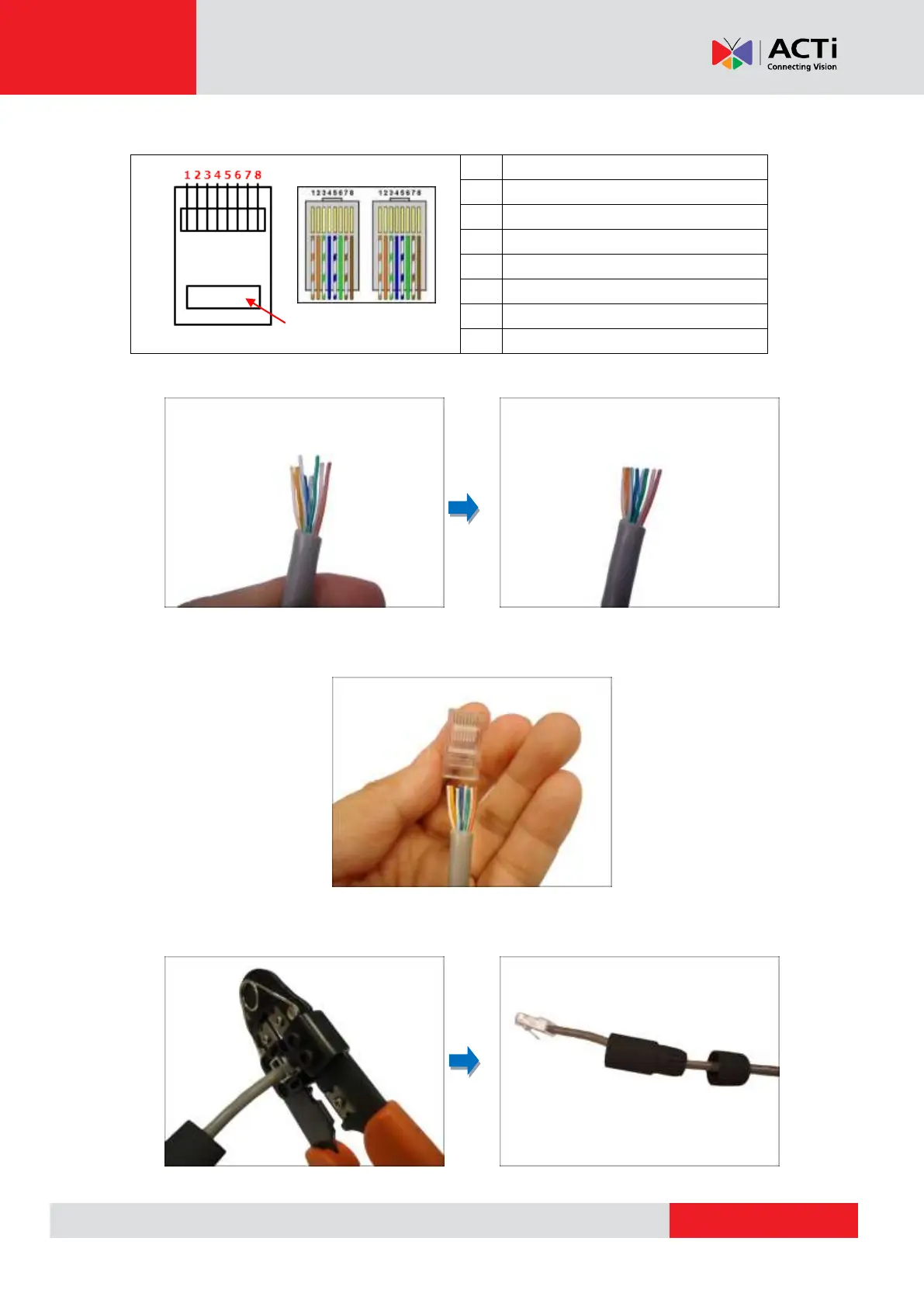

3. Unwind the wires and arrange them according to the color sequence below.
This side up
1
Stripe Orange
2
Orange
3
Stripe Green
4
Blue
5
Stripe Blue
6
Green
7
Stripe Brown
8
Brown
4. Straighten out the wires and use the scissors to make a straight cut ½ inch from the cut end.
5. With the RJ-45 connector tab facing down, push down the wires into the connector all the
way to the end.
6. Place the connector into the crimping tool, and cinch down to secure the RJ-45 connector to
the Ethernet cable.
