Hardware Manual
20

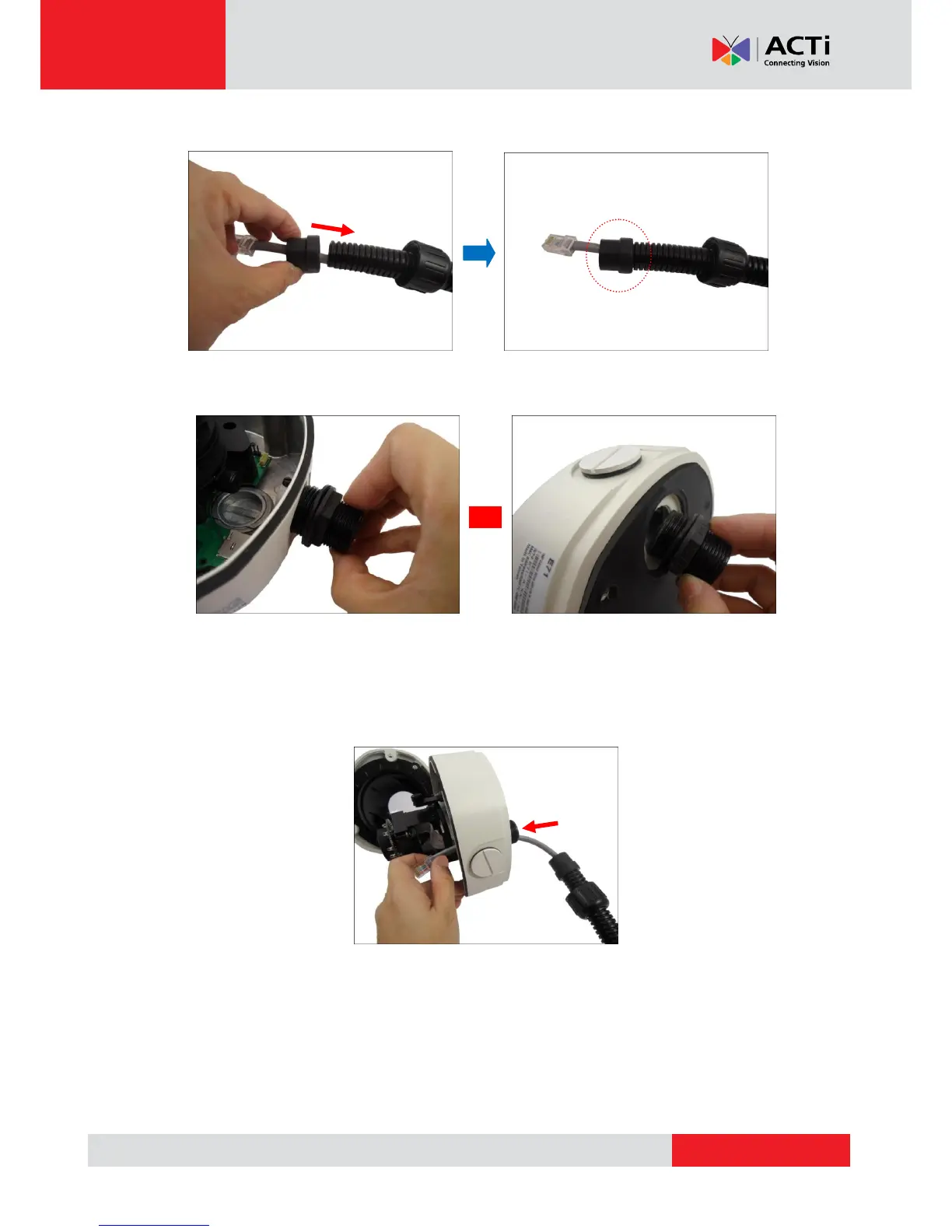

5. Insert the sealing insert and attach it at the end of the flex conduit.
6. Screw the conduit gland body to the conduit hole of the camera.
Attach to Side Conduit Hole Attach to Bottom Conduit Hole
7. If the cable will be routed along the surface, skip this step. If the cable will pass through
the surface, do the following:
a. Pull the network cable through the bottom conduit hole.
To Next Page
